Dukin Champ Coordinate Measuring Machine

Email For Quote: sales@williamstoolco.com

$304,000.00
Sold Out

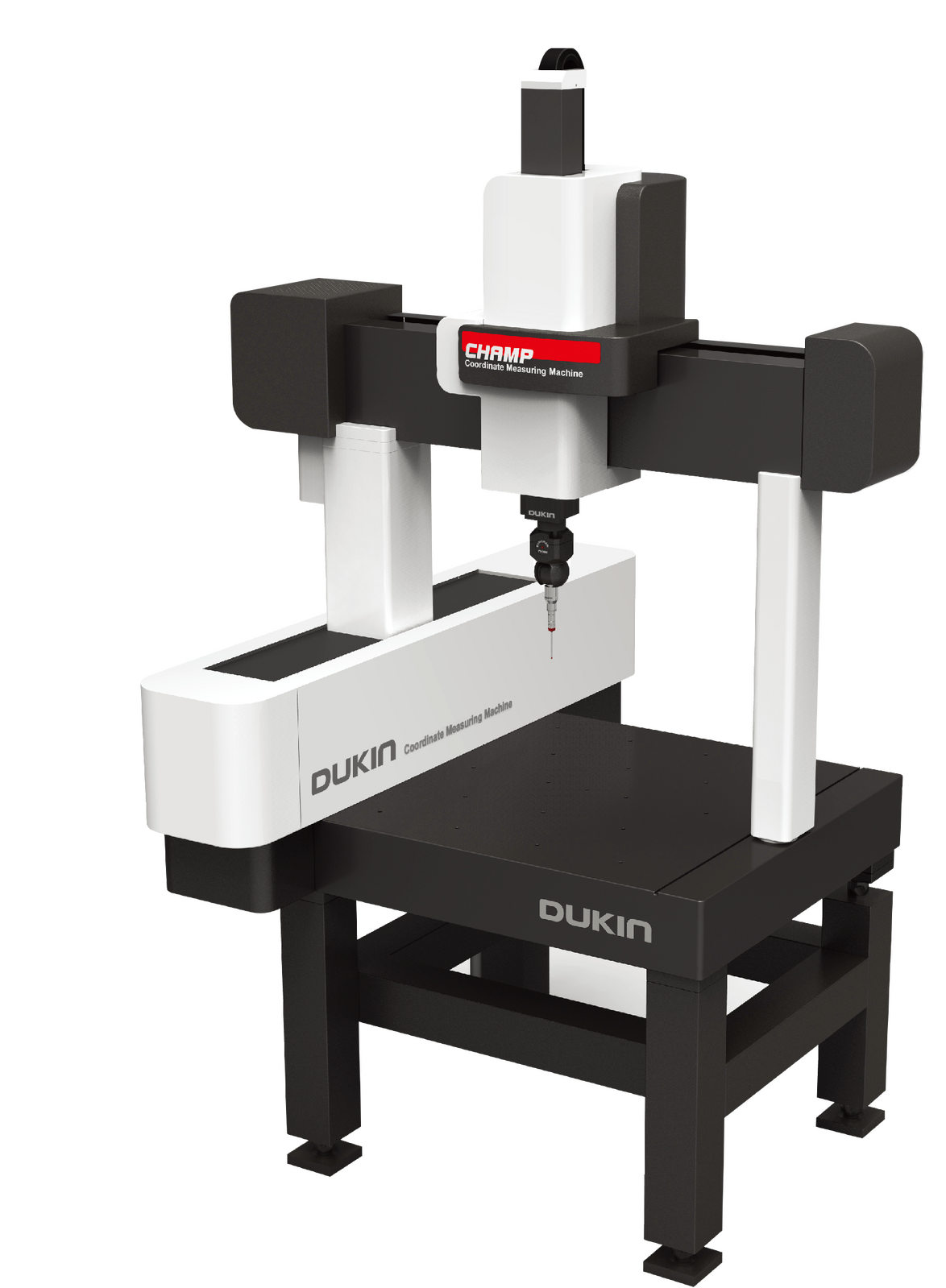

Small CNC Coordinate Measuring Machine (CHAMP)

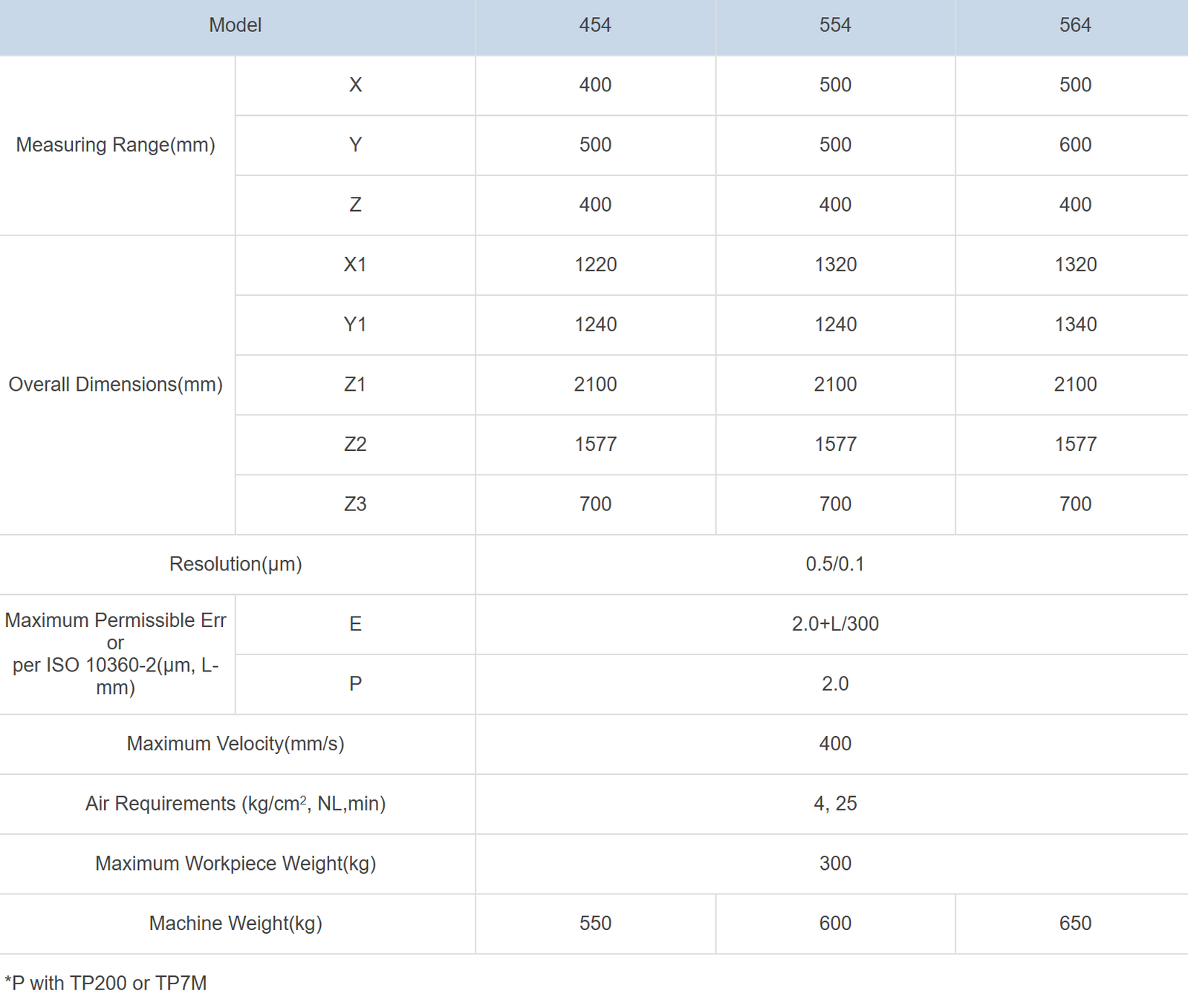

Model Specifications: Check Images Above

  • Adopted bridge structure which improves working convenience
  • Adopted stable lightweight structure which is appropriate to high-speed precision measurement
  • Air bearings on all axes for high stability at high travel speeds
  • Best for measuring small parts such as prevision mold and electronic parts
  • High quality and cost-effective design
  • CE certified in accordance with EN ISO 12100:2010 and EN 60204-1:2006+A1:2009

System Dimension

Standard Accessories

  • Air Dryer(Oil Filter/Air Filter)
  • Training Workpiece
  • Datum Sphere(Diameter 25.0mm)

CNC Controller

  • Advanced continuous Motion Control suing DSP Technology
  • Electric Power Supply & Joystick assembly with Extra Keyboard

Probe Head

Trigger Probe

Scanning Probe

5 Axis Measurement Probe

Tool Changer

NeuroMeasure

3 Dimensional Measurement Software

  • NeuroMeasure is the software for 3-dimensional measuring machine by combining measurement technology and CAD & Simulation.
  • NueroMeasure is the world's best solution for 3-dimensional measuring process which combines specialized technology, user convenience, various analysis method, interactive programming, and high-quality graphical inspection report developed and improved by real CMM users and experts.

NeuroSurf

Curve/Surface Analysis Software

  • NeuroSurf is a specialized software for free formed curve/surface analysis. it can obtain deviation analysis comparing scanned/measured data with CAD files and make a CAD model for reverse engineering. It is equipped with varied functions to process 2D/3D, Known/Unknown curves and curved surfaces.
  • NeuroSurf can calculate and analyze varied geometrical elements using collected points and corrdinates. And, it realizes data compatibility with various external systems. Therefore, it leads technological development of seeking compatibility and extendibility.



(WTC-D-Champ)

SKU WTC-D-Champ
Brand Dukin
