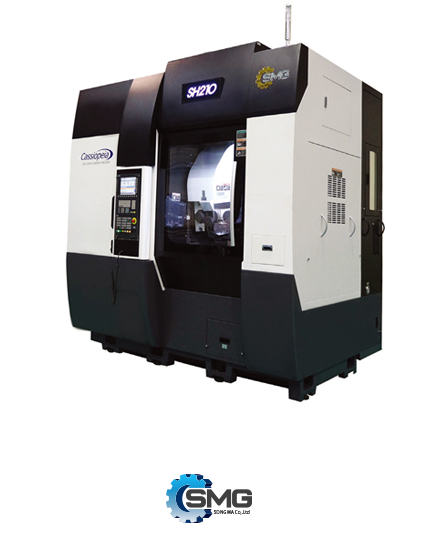

SMG SH210

Mechanical Features

• Realization of Zero Backlash by applying High torque Direct-Drive Motor on C-axis
• Wet and Dry hobbing process on the same Machine
• High speed and High reliability Ring loader enables a variety of automation
• Optimized Dry cutting System & Thermal Stability
• Optimized Stucture by Structural Analysis(FEM)
• High Accuracy(Above DIN 6 Grade)
• User Friendly Siemens 840D SL / 828D & Easy Dialogue P/G

Features of Sub Assembly

High rigidity hob head

• By applying Linear roller bearing to Y-axis and arbor support, it guarantees high precision while heavy cutting and enables tangential cutting.
• By applying Dual Contact Hob arbor, maintain the high spindle rigidity while heavy cutting
• Quick and easy hob setting is possible with the Hob presetter

High rigidity tail stock By using strong cast frame and high rigidity roller guide, high precision gear cutting is possible while heavy cutting

High-precision table No Backlash Table with the application of High Torque Direct-Drive Motor and Precision Encoder, it guarantees high Cutting Accuracy

Features of Machine body

Angled Wide Slide Way

X-axis Slide Way

Z-axis Slide Way

With the adoption of the Wide Slideway angled structure into the bed and column, it allows precise work based on the lowered surface pressure and high cutting resistance

Optimized Structure by Structural Analysis (FEM)

Support Wet cutting and Dry cutting

High pressure air nozzle & Coolant nozzle

Inner SUS guard

• This machine is Designed for Wet or Dry Cutting
• Slope type bed provide the best Chip disposal condition
• High pressure air nozzle and SUS guard on the bed provide Optimized Dry cutting system and High Thermal stability
