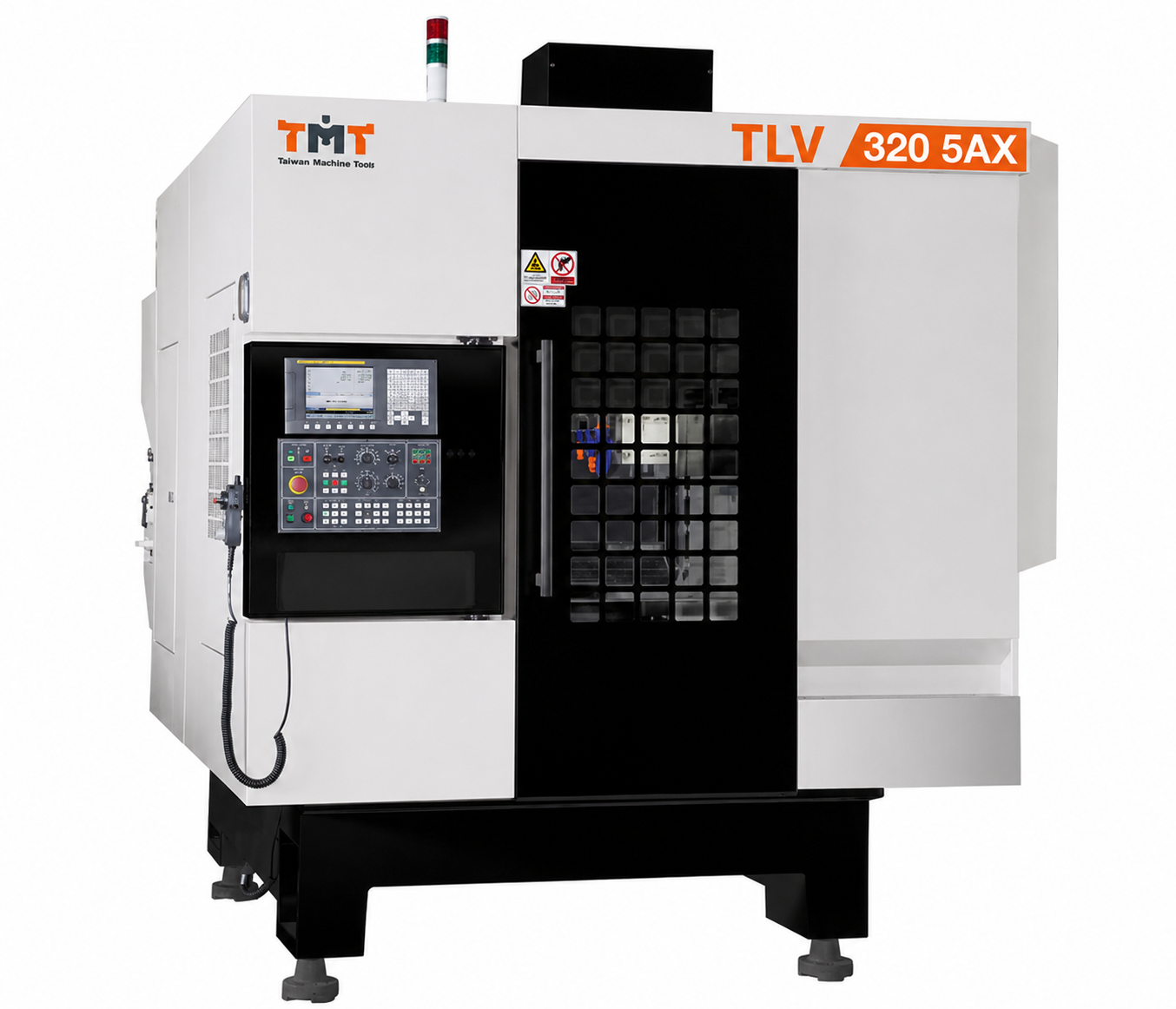

TMT TLV-320 5AX 5-Axis Vertical Machining Center

The TMT TLV-320 5AX is a compact, high-speed 5-axis vertical machining center designed for precision machining of complex and multi-face components. With full 5-axis capability, the machine is well suited for drilling, tapping, angled face cutting, irregular surface machining, and high-accuracy component production.

Built with a rigid travelling-column structure, oversized machine base, and lightweight moving components, the TLV-320 5AX is designed to deliver high-speed movement while maintaining excellent machining stability. The machine also features roller-type linear guideways across the X, Y, and Z axes, helping provide smooth travel, accuracy, and reduced vibration during operation.

The TLV-320 5AX comes equipped with a BT-40 direct-drive spindle, 8000 rpm standard spindle speed, 48 m/min rapid traverse rates, and a servo-driven 30+1 tool magazine. Its A-axis movement of +120° / -30° and 360° C-axis rotary table allow efficient machining of complex parts in fewer setups, improving productivity and reducing handling time.

Key Features

• Compact 5-axis vertical machining center for complex component machining
• Ideal for multi-face machining, drilling, tapping, angled surface cutting, and irregular surface machining
• Travelling-column structure for stable high-speed movement
• Oversized machine base for improved rigidity and cutting stability
• Roller-type linear guideways on X, Y, and Z axes
• BT-40 direct-drive spindle
• Standard spindle speed of 8000 rpm
• Rigid tapping capability up to 3000 rpm
• Rapid traverse rates of 48 / 48 / 48 m/min
• A-axis movement of +120° / -30°
• 360° C-axis rotary table
• φ320 mm rotary table with 100 kg maximum load capacity
• Servo-driven arm-type tool magazine
• 30+1 tool capacity
• Fast 1.7 second tool-to-tool change time
• Designed to reduce setups and improve machining efficiency

Main Specifications

• Model: TLV-320 5AX
• Machine Type: 5-Axis Vertical Machining Center
• X-Axis Travel: 560 mm
• Y-Axis Travel: 400 mm
• Z-Axis Travel: 400 mm
• A-Axis Travel: +120° / -30°
• C-Axis Travel: 360°
• Maximum Swing: φ320 mm
• Table Size: φ320 mm
• Maximum Table Load: 100 kg
• T-Slot: 12 mm
• Table to Spindle Nose: 150 - 550 mm
• Maximum Work Area at 90°: φ260 x 260L mm
• Spindle Speed: 8000 rpm
• Maximum Tapping Speed: 3000 rpm
• Spindle Taper: BT-40 / 7/24 No.40
• Transmission: Direct Drive
• Rapid Traverse: 48 / 48 / 48 m/min
• Rapid C/A Axis: 25 / 16.6 rpm
• Cutting Feedrate: 8000 mm/min
• Tool Shank: BT-40
• Magazine Type: Arm Type
• Tool Capacity: 30+1
• Maximum Tool Length: 275 mm
• Maximum Tool Diameter: 80 mm
• Maximum Tool Weight: 5 kg
• Tool Change Time: 1.7 seconds tool-to-tool
• Chip-to-Chip Time: 3.2 seconds
• Machine Size: 2277 x 4120 x 2745 mm
• Net Weight: 5200 kg
