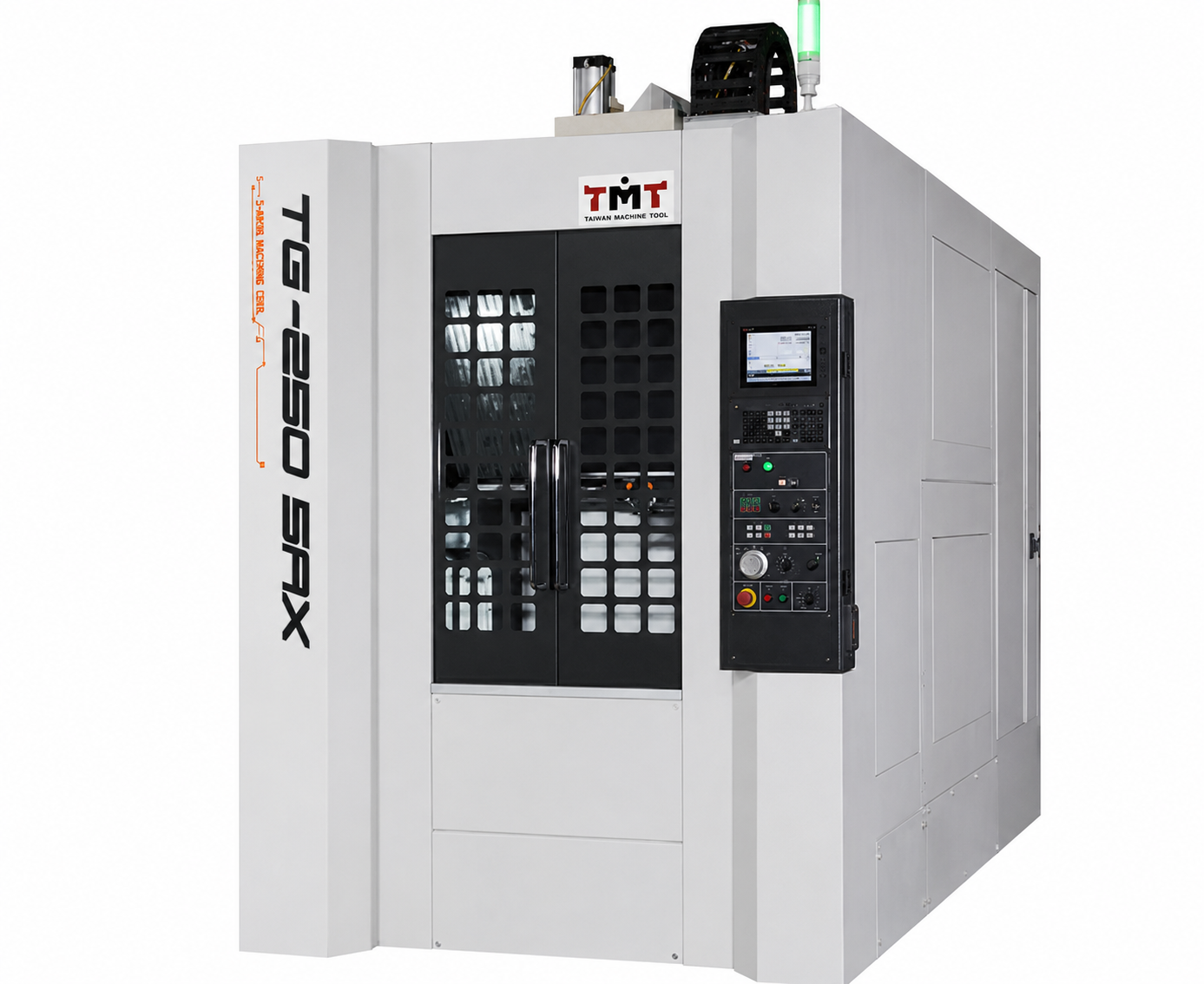

TMT TG Series TG-250 5AX Column Travelling Gantry Machining Centre

The TMT TG-250 5AX is a compact and highly efficient 5-axis column travelling gantry machining centre designed for precision machining, finishing, and multi-face component production. With its rigid gantry-type structure and compact footprint, the TG-250 5AX is ideal for manufacturers requiring accurate 5-axis capability in a space-saving machine design.

Featuring 700mm X-axis travel, 450mm Y-axis travel, and 420mm Z-axis travel, the TG-250 5AX provides excellent machining flexibility for small to medium precision components. The integrated A-axis and C-axis rotary table allows complex parts to be machined from multiple faces in fewer setups, helping improve accuracy, reduce handling time, and increase productivity.

The TG-250 5AX is equipped with a 10,000rpm BT-40 direct-drive spindle, delivering smooth and stable cutting performance with reduced vibration, noise, and backlash. A servo-driven automatic tool magazine, high-speed rapid traverse rates, and strong machine structure make the TG-250 5AX well suited to precision manufacturing, complex component machining, and production environments.

Key Features

  • Compact 5-axis column travelling gantry machining centre
  • Rigid gantry-type structure for high cutting stability
  • Integrated A-axis and C-axis rotary table
  • Ideal for multi-face machining in fewer setups
  • BT-40 direct-drive spindle as standard
  • Direct-drive transmission helps reduce vibration, noise, and backlash
  • High-speed 48 / 48 / 48 m/min rapid traverse
  • Servo-driven automatic tool magazine
  • Compact machine footprint for efficient workshop floor space use
  • Cutting area isolation to help protect the transmission system
  • Suitable for precision finishing, complex parts, and production machining

Main Specifications

  • Model: TG-250 5AX
  • Machine Type: 5-Axis Column Travelling Gantry Machining Centre
  • X-Axis Travel: 700mm
  • Y-Axis Travel: 450mm
  • Z-Axis Travel: 420mm
  • A-Axis Travel: -120° / +30°
  • C-Axis Travel: 360°
  • Table to Spindle Nose: 150 - 570mm
  • Maximum Work Area: 255 x 300mm
  • Table Size: Ø250mm
  • Maximum Table Load: 75kg x 2 horizontal / 40kg x 2 tilted
  • T-Slot: 12H7 x 4 x 90°
  • Spindle Speed: 10,000rpm
  • Spindle Taper: BT-40
  • Spindle Transmission: Direct drive
  • Rapid Traverse: 48 / 48 / 48 m/min
  • Cutting Feedrate: 10,000mm/min
  • Tool Shank: BT-40
  • Pull Stud: P40T-1 MAS403-45°
  • Magazine Type: Servo drive
  • Tool Capacity: 22 tools
  • Maximum Tool Length: 300mm
  • Maximum Tool Diameter: 100mm
  • Maximum Tool Weight: 4kg
  • Tool Change Time: 4 seconds tool-to-tool
  • X-Axis Servo Motor: 3.0kW
  • Y-Axis Servo Motor: 3.0kW
  • Z-Axis Servo Motor: 3.0kW
  • Spindle Motor: 5.5 / 7.5kW

5-Axis Machining Capability

The TG-250 5AX is designed to provide accurate multi-face machining in a compact platform. Its A-axis and C-axis rotary table allows complex components to be machined from multiple angles in fewer setups, helping reduce workpiece handling and improve overall part accuracy.

Direct-Drive Spindle

The direct-drive spindle system helps eliminate common belt-drive issues such as vibration, noise, and backlash. This supports smoother machining, improved surface finish, and reliable precision performance. The spindle air curtain also helps prevent moisture and chips from entering the spindle area.

Optional Equipment

  • 12,000rpm, 15,000rpm, or 20,000rpm spindle speed upgrade
  • 7.5 / 11kW spindle motor upgrade
  • HSK 50A tool magazine and spindle
  • HSK 63A tool magazine and spindle
  • SK-40 or CAT-40 tool magazine and spindle
  • NBT-40 or BBT-40 spindle
  • Automatic tool length measurement with breakage detection
  • Optical scale
  • A-axis and C-axis optical scale
  • Rear type chip conveyor
  • Auto door
  • Coolant gun and air gun
  • Air gun
  • Electrical cabinet air conditioner
  • Transformer or voltage stabilizer

The TMT TG-250 5AX is an excellent choice for manufacturers looking for a compact, rigid, and accurate 5-axis machining centre suitable for precision components, multi-face machining, and high-efficiency production.

(WTC-TMT-TG250-5AX)
