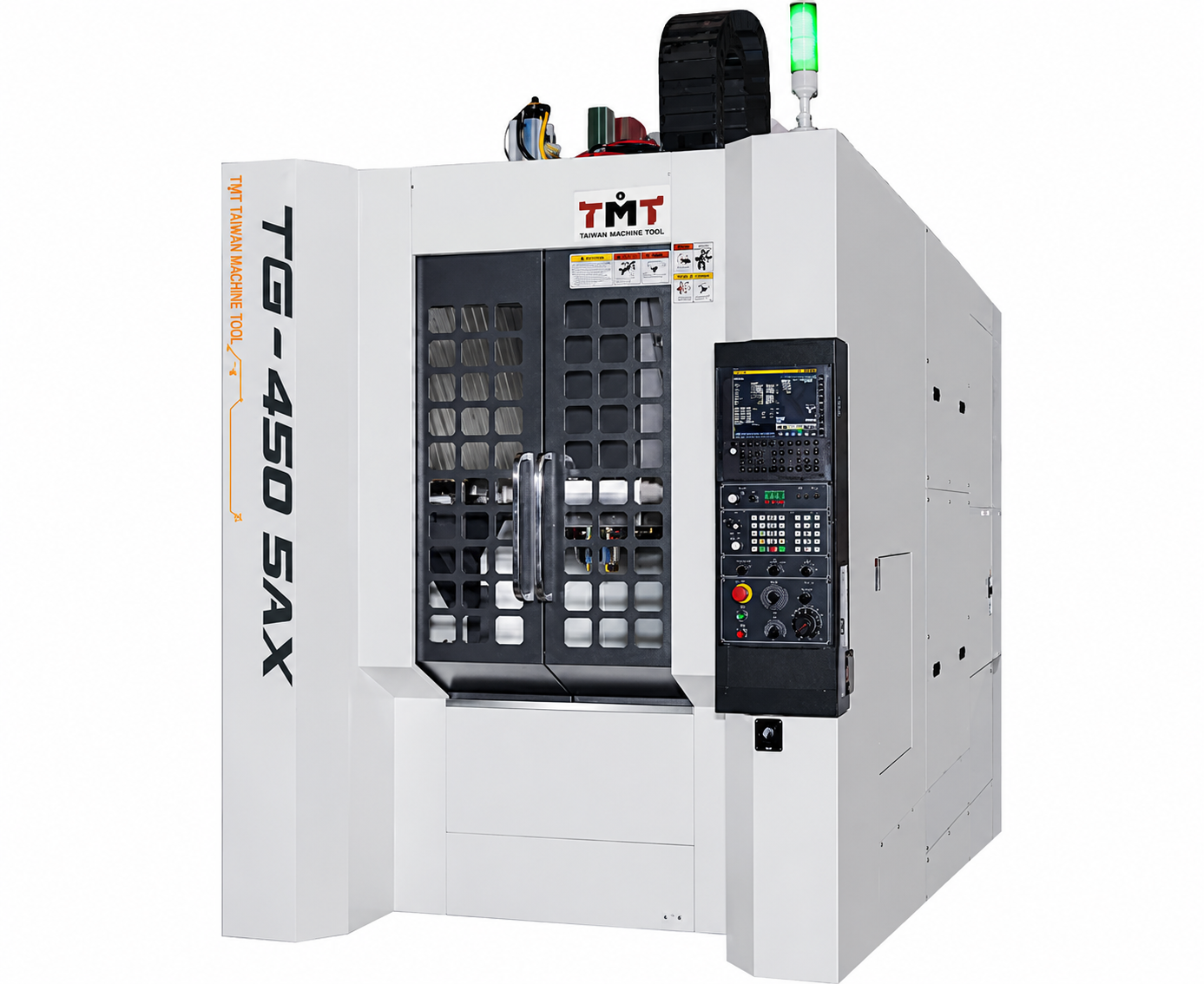

TMT TG Series TG-450 5AX Column Moving Gantry Type Machining Centre

The TMT TG-450 5AX is a high-precision 5-axis column moving gantry type machining centre designed for complex component machining, precision finishing, and efficient multi-face production. Built with a rigid gantry-style structure, the TG-450 5AX delivers excellent cutting stability, accuracy, and machining performance while maintaining a compact and efficient machine design.

With 650mm X-axis travel, 630mm Y-axis travel, and 480mm Z-axis travel, the TG-450 5AX offers strong machining capacity for precision components. The integrated A-axis and C-axis rotary table allows multi-face machining in fewer setups, helping reduce handling time, improve accuracy, and increase productivity.

The machine is equipped with a 10,000rpm BT-40 direct-drive spindle, providing smooth, stable, and accurate cutting performance. The direct-drive spindle design helps reduce vibration, noise, and backlash, while the servo-driven automatic tool magazine supports fast and reliable tool changes for efficient production machining.

Key Features

  • 5-axis column moving gantry type machining centre
  • Rigid gantry-type structure for high cutting rigidity
  • Integrated A-axis and C-axis rotary table
  • Ideal for multi-face machining in fewer setups
  • BT-40 direct-drive spindle as standard
  • Direct-drive transmission helps reduce noise, vibration, and backlash
  • High-speed 48 / 48 / 48 m/min rapid traverse
  • Servo-driven automatic tool magazine
  • 40-tool magazine capacity
  • Cutting area isolation to help protect the transmission system
  • Suitable for precision finishing, complex parts, and production machining

Main Specifications

  • Model: TG-450 5AX
  • Machine Type: 5-Axis Column Moving Gantry Type Machining Centre
  • X-Axis Travel: 650mm
  • Y-Axis Travel: 630mm
  • Z-Axis Travel: 480mm
  • A-Axis Travel: -110° / +30°
  • C-Axis Travel: 360°
  • Table to Spindle Nose: 150 - 630mm
  • Maximum Work Area: Ø450 x 400mm
  • Table Size: Ø350mm
  • Maximum Table Load: 200kg horizontal / 150kg tilted
  • Spindle Speed: 10,000rpm
  • Spindle Taper: BT-40
  • Spindle Transmission: Direct drive
  • Rapid Traverse: 48 / 48 / 48 m/min
  • Cutting Feedrate: 10,000mm/min
  • Tool Shank: BT-40
  • Pull Stud: MAS403-BT40-45
  • Magazine Type: Servo drive
  • Tool Capacity: 40 tools
  • Maximum Tool Length: 300mm
  • Maximum Tool Diameter: 76mm
  • Maximum Tool Weight: 7kg
  • Tool Change Time: 4 seconds tool-to-tool
  • X-Axis Servo Motor: 3.0kW
  • Y-Axis Servo Motor: 3.0kW
  • Z-Axis Servo Motor: 3.0kW
  • Spindle Motor: 7.5 / 11kW

5-Axis Machining Capability

The TG-450 5AX is designed for accurate multi-face machining and complex component production. Its A-axis and C-axis rotary table allows parts to be machined from multiple angles in fewer setups, helping reduce workpiece handling, improve accuracy, and save production time.

Direct-Drive Spindle

The direct-drive spindle system helps eliminate common belt-drive issues such as vibration, noise, and backlash. This supports smoother machining, improved surface finish, and reliable precision performance. The spindle air curtain also helps prevent moisture and chips from entering the spindle area.

Servo Drive Tool Magazine

The servo-driven automatic tool magazine provides fast and stable tool changes, with a tool-to-tool change time of approximately 4 seconds. The centre-mounted ATC design helps reduce machine width and keeps moving mass lower for stable machining performance.

Optional Equipment

  • 12,000rpm, 15,000rpm, or 20,000rpm spindle speed upgrade
  • HSK 50A tool magazine and spindle
  • HSK 63A tool magazine and spindle
  • SK-40 or CAT-40 tool magazine and spindle
  • NBT-40 or BBT-40 spindle
  • Automatic tool length measurement with breakage detection
  • Optical scale
  • A-axis and C-axis optical scale
  • Rear type chip conveyor
  • Auto door
  • Coolant gun and air gun
  • 4th axis rotary table or 5th axis rotary and tilting table
  • Electrical cabinet air conditioner
  • Transformer or voltage stabilizer

The TMT TG-450 5AX is an excellent choice for manufacturers requiring a rigid, accurate, and productive 5-axis machining centre for complex components, multi-face machining, and high-efficiency precision production.

(WTC-TMT-TG450-5AX)
