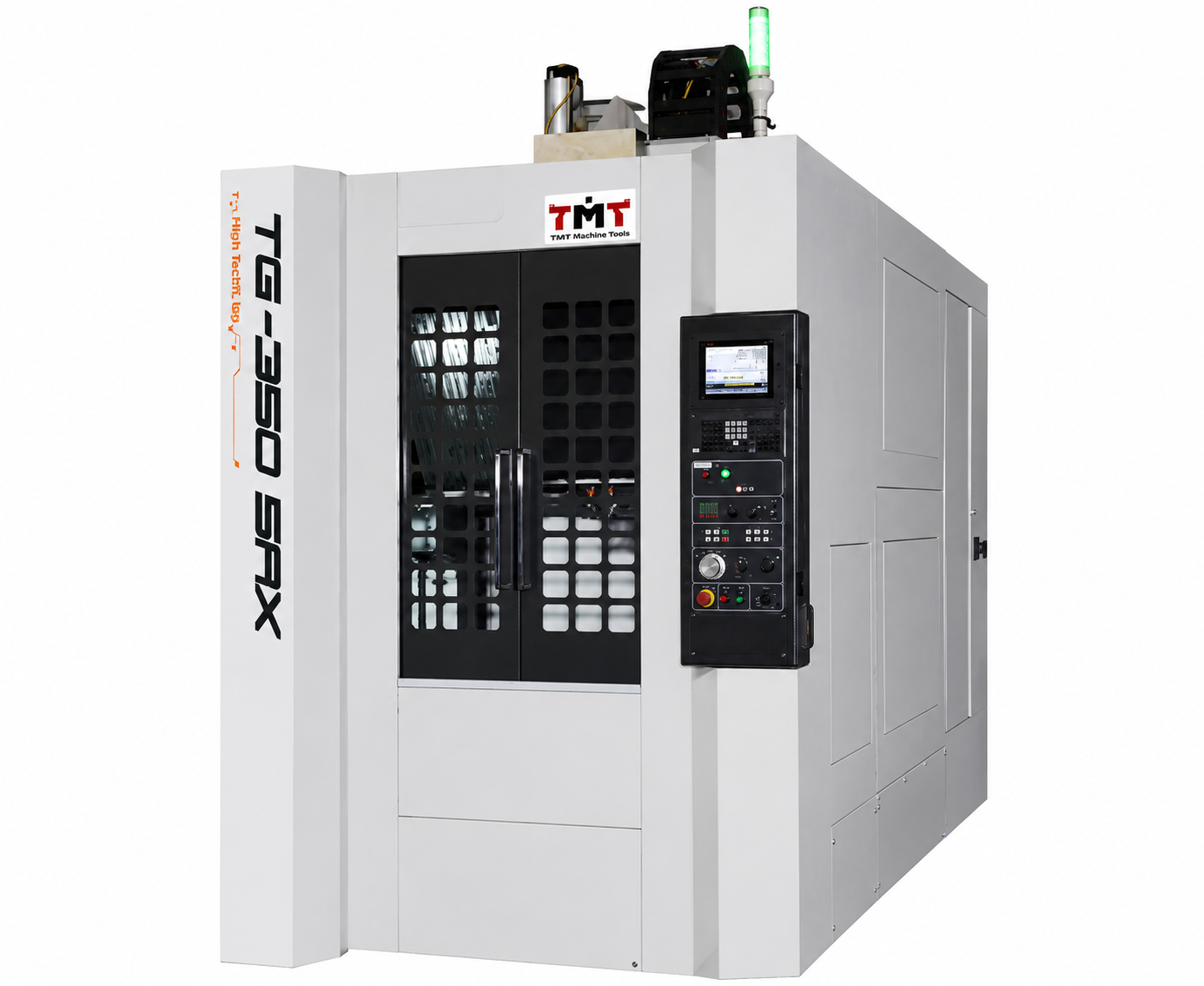

TMT TG Series TG-350 5AX Column Travelling Gantry Machining Centre

The TMT TG-350 5AX is a compact and highly capable 5-axis column travelling gantry machining centre designed for precision machining, finishing, and multi-face component production. Built with a rigid gantry-type structure, the TG-350 5AX provides excellent cutting stability while maintaining a compact machine footprint.

With 700mm X-axis travel, 450mm Y-axis travel, and 420mm Z-axis travel, the TG-350 5AX offers strong machining flexibility for complex parts. The integrated A-axis and C-axis rotary table allows accurate multi-face machining in a single setup, helping reduce handling time, improve accuracy, and increase overall productivity.

The machine is equipped with a 10,000rpm BT-40 direct-drive spindle, providing smooth and efficient cutting performance with reduced vibration, noise, and backlash. A servo-driven automatic tool magazine and high-speed rapid traverse rates help support efficient cycle times for modern production environments.

Key Features

  • Rigid column travelling gantry machine structure
  • Integrated 5-axis machining capability
  • A-axis and C-axis rotary table for multi-face machining
  • Direct-drive spindle for reduced vibration and improved surface finish
  • BT-40 spindle taper as standard
  • High-speed rapid traverse on X, Y, and Z axes
  • Servo-driven automatic tool magazine
  • Compact footprint for efficient workshop floor space use
  • Cutting area isolation to help protect the transmission system
  • Suitable for precision finishing, complex components, and production machining

Main Specifications

  • Model: TG-350 5AX
  • Machine Type: 5-Axis Column Travelling Gantry Machining Centre
  • X-Axis Travel: 700mm
  • Y-Axis Travel: 450mm
  • Z-Axis Travel: 420mm
  • A-Axis Travel: -120° / +30°
  • C-Axis Travel: 360°
  • Table to Spindle Nose: 150 - 570mm
  • Maximum Work Area: 350 x 300mm
  • Table Size: Ø350mm
  • Maximum Table Load: 100kg horizontal / 70kg tilted
  • T-Slot: 12H7 x 4 x 90°
  • Spindle Speed: 10,000rpm
  • Spindle Taper: BT-40
  • Spindle Transmission: Direct drive
  • Rapid Traverse: 48 / 48 / 48 m/min
  • Cutting Feedrate: 10,000mm/min
  • Tool Shank: BT-40
  • Pull Stud: P40T-1 MAS403-45°
  • Magazine Type: Servo drive
  • Tool Capacity: 22 tools
  • Maximum Tool Length: 300mm
  • Maximum Tool Diameter: 100mm
  • Maximum Tool Weight: 4kg
  • Tool Change Time: 4 seconds tool-to-tool
  • X-Axis Servo Motor: 3.0kW
  • Y-Axis Servo Motor: 3.0kW
  • Z-Axis Servo Motor: 3.0kW
  • Spindle Motor: 5.5 / 7.5kW

5-Axis Machining Capability

The TG-350 5AX is designed for accurate multi-face machining in a compact platform. With its A-axis and C-axis rotary table, the machine allows complex components to be machined from multiple angles in fewer setups, helping improve part accuracy, reduce handling, and save production time.

Direct-Drive Spindle

The direct-drive spindle system helps minimise vibration, noise, and backlash, supporting smooth cutting performance and improved surface finish. The spindle air curtain also helps prevent moisture and chips from entering the spindle area.

Optional Equipment

  • 12,000rpm, 15,000rpm, or 20,000rpm spindle speed upgrade
  • 7.5 / 11kW spindle motor upgrade
  • HSK 50A tool magazine and spindle
  • HSK 63A tool magazine and spindle
  • SK-40 or CAT-40 tool magazine and spindle
  • NBT-40 or BBT-40 spindle
  • Automatic tool length measurement with breakage detection
  • Optical scale
  • A-axis and C-axis optical scale
  • Rear type chip conveyor
  • Auto door
  • Coolant gun and air gun
  • Electrical cabinet air conditioner
  • Transformer or voltage stabilizer

The TMT TG-350 5AX is an excellent choice for manufacturers requiring compact 5-axis machining capability, high rigidity, and efficient production performance for complex precision components.

(WTC-TMT-TG350-5AX)

SKU WTC-TMT-TG350-5AX
Brand TMT
