FFG-DMC DM 52VL Vertical Machining Center

$0.00
In Stock
AVAILABILITY
International Warehouse — 2 To 3 Months In Stock

DOWNLOADABLE BROCHURE BELOW IMAGES

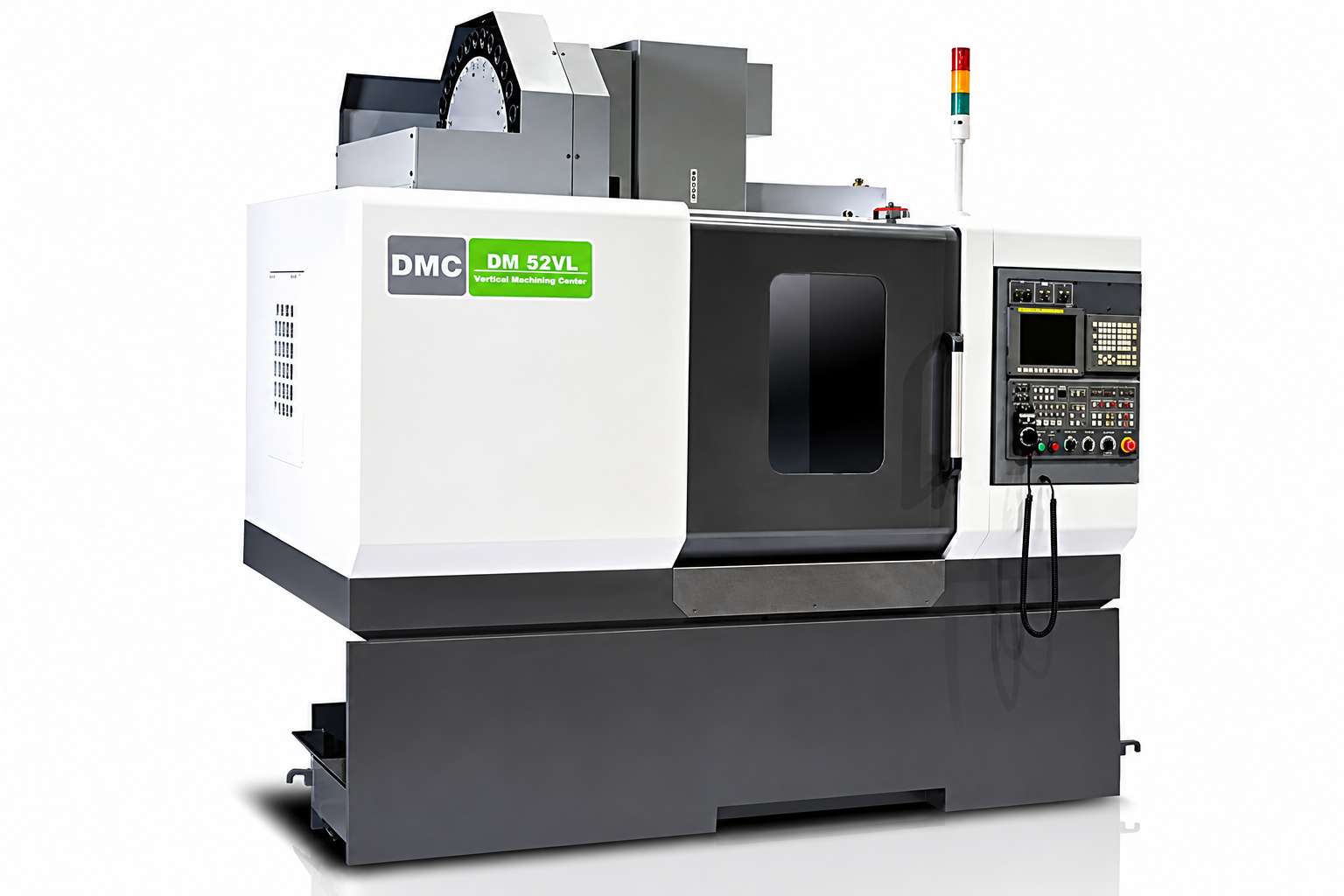

FFG DMC DM 52VL Vertical Machining Centre

The FFG DMC DM 52VL Vertical Machining Centre combines large working capacity with high-speed precision machining performance for demanding industrial applications.

Featuring roller guideways for increased rigidity and cutting stability, the DM 52VL is engineered for efficient production machining of larger workpieces and heavy-duty cutting operations.

With X/Y/Z travels of 1,020 x 520 x 510 mm and a spacious 1,100 x 550 mm table, the DM 52VL provides the flexibility required for a wide variety of manufacturing applications.

The BBT40 spindle delivers 8,000 RPM standard with optional 12,000 RPM capability, allowing both high-speed finishing and powerful material removal performance.

Key Features

  • Large 1,020 mm X-axis travel
  • Roller guideways for improved rigidity
  • 1,100 x 550 mm table capacity
  • 8,000 RPM spindle with optional 12,000 RPM
  • BBT40 BIG Plus spindle system
  • High-speed twin-arm automatic tool changer
  • Ideal for production machining and heavy-duty cutting

Machine Specifications

  • Maximum Table Load: 700 kg
  • Rapid Traverse: 36 / 36 / 30 m/min
  • Tool Capacity: 24 Tools (Optional 30 / 40)
  • Spindle Power: 11 / 15 kW
  • Machine Weight: 5,700 kg



(WTC-FFG-DMC-DM52VL)

SKU WTC-FFG-DMC-DM52VL
Brand FFG-DMC
