FFG-DMC FM 50V Vertical Machining Center

$0.00
In Stock
AVAILABILITY
International Warehouse — 2 To 3 Months In Stock

DOWNLOADABLE BROCHURE BELOW IMAGES

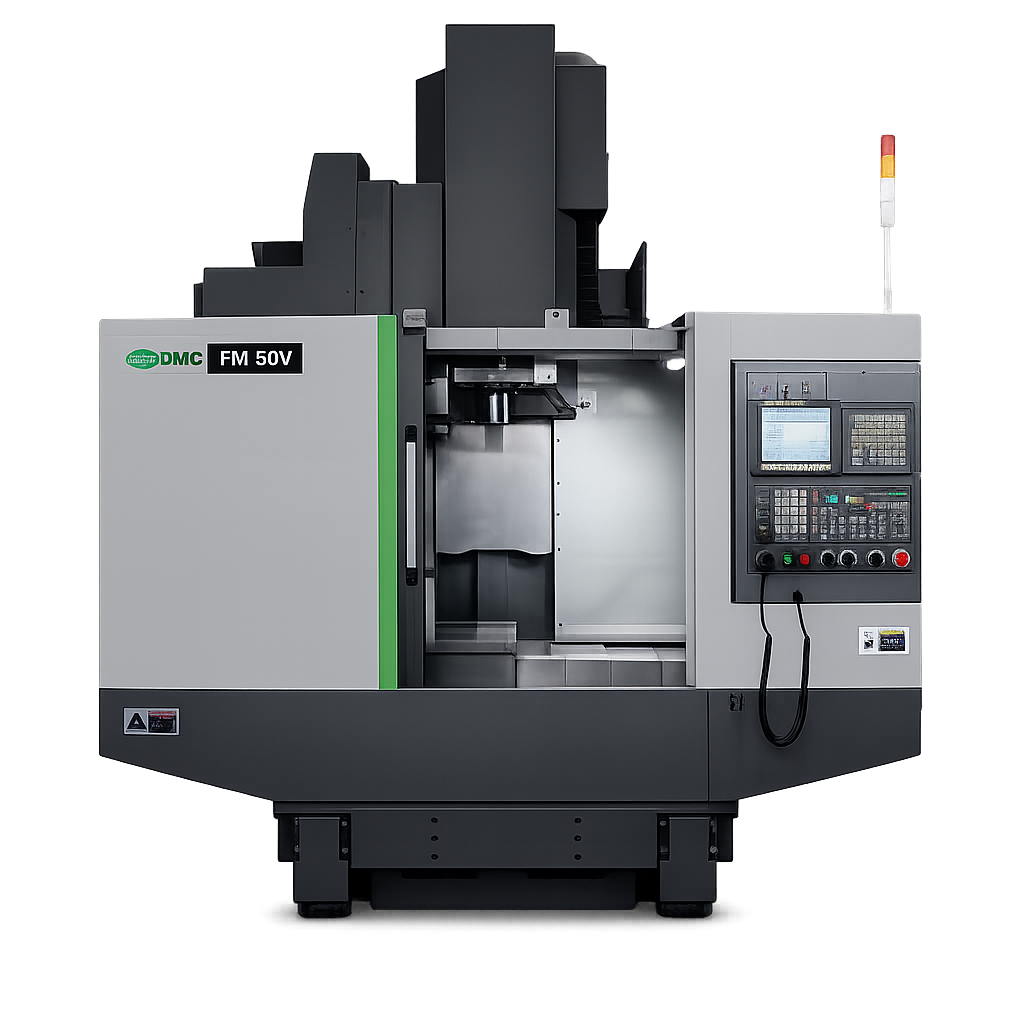

FFG DMC FM 50V Vertical Machining Centre

The FFG DMC FM 50V Vertical Machining Centre is a high-speed production machining centre engineered for exceptional productivity, rapid positioning, and precision machining performance.

Featuring a direct-drive spindle and high-speed rapid traverse system, the FM 50V is designed for fast cycle times and superior surface finish quality.

With X/Y/Z travels of 800 x 520 x 510 mm, a 950 x 550 mm table, and a 15,000 RPM BBT40 direct-drive spindle, the FM 50V is ideal for high-speed machining of aluminium, non-ferrous materials, and precision engineering components.

Rapid traverse rates of up to 60 m/min provide outstanding productivity in high-volume manufacturing environments.

Key Features

  • High-speed 15,000 RPM direct-drive spindle
  • 60 m/min rapid traverse rates
  • 800 x 520 x 510 mm axis travel
  • Roller guideway construction
  • Twin-arm automatic tool changer
  • BBT40 BIG Plus spindle system
  • Designed for high-speed production machining
  • Excellent surface finish and positioning accuracy

Machine Specifications

  • Maximum Table Load: 700 kg
  • Spindle Power: 15 / 18.5 / 22 kW
  • Tool Capacity: 30 Tools
  • Tool Change Time: 2.3 / 4.2 sec
  • Machine Weight: Approx. 7,000 kg



(WTC-FFG-DMC-FM50V)

SKU WTC-FFG-DMC-FM50V
Brand FFG-DMC
