TBV 1172 Vertical Machining Center (Boxway)

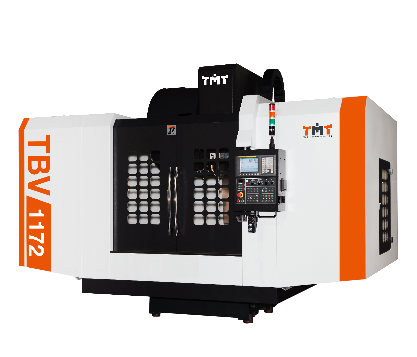

TMT TBV-1172 CNC Vertical Machining Centre

The TMT TBV-1172 CNC Vertical Machining Centre is a heavy-duty, box-way machine engineered for high rigidity, precision accuracy, and reliable performance in demanding machining environments. With extended Y-axis travel and increased table capacity, the TBV-1172 is ideal for larger workpieces and more complex machining operations.

Designed with advanced spindle technology, thermal stability systems, and strict precision inspection standards, this machine delivers consistent results across long production cycles.

Key Features

• Three-Axis Box Way Construction – Provides superior rigidity, vibration dampening, and stability for heavy cutting applications.
• High-Precision Spindle System – Rigid spindle with angular contact bearings ensures high accuracy and minimal vibration (±2μm).
• Thermal Stability – Integrated spindle oil cooling system reduces thermal displacement for consistent machining accuracy.
• Advanced Quality Control – Components verified via CMM inspection, laser calibration, and ball bar testing for repeatability.
• Automatic Lubrication System – Ensures smooth axis movement, reduces wear, and eliminates stick-slip issues.
• Flexible Spindle Configurations – Available in belt drive, gear drive (high torque), or direct drive (high speed and finish quality).
• Enhanced Chip Evacuation – Multiple flushing nozzles improve chip removal and machining efficiency.

Standard Specifications

• Table Size: 1300 x 700 mm
• Table Load Capacity: 1300 kg
• X-Axis Travel: 1100 mm
• Y-Axis Travel: 720 mm
• Z-Axis Travel: 610 mm (Optional 680 mm)
• Spindle Speed: 8000 RPM (Optional 10,000 – 12,000 RPM)
• Spindle Taper: BT-40 (Optional BT-50)
• Spindle Motor: 11 / 15 kW
• Rapid Feedrate (X/Y/Z): 18 / 18 / 15 m/min (Optional 24 / 24 / 15)
• Tool Magazine: 24 Tools (Arm Type)
• Max Tool Weight: 7 kg (BT-50: 15 kg)
• Tool Change Time: 1.6 sec

Specifications subject to change without notice.

Optional Features

• Higher spindle speeds (10,000 – 15,000 RPM)
• Gearbox spindle for high torque machining
• Through-Spindle Coolant (CTS)
• 30–40 Tool Magazine Capacity
• Optical Linear Scales for enhanced accuracy
• 4th Axis / Rotary Table Compatibility
• High Pressure Coolant Systems

Applications

• Heavy-duty machining and material removal
• Medium to large component manufacturing
• General engineering and jobbing work
• Automotive and industrial production

Why Choose the TBV-1172?

• Increased capacity for larger workpieces
• Rigid box-way construction for heavy cutting
• High precision and repeatability
• Excellent thermal stability for long machining cycles
• Flexible configuration options for a wide range of applications
