TBV 1100 Vertical Machining Center (Boxway)

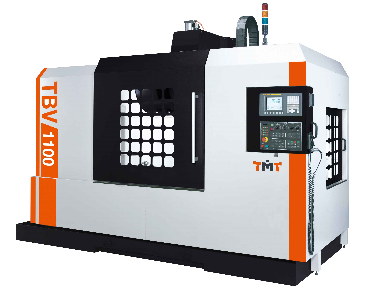

TMT TBV-1100 CNC Vertical Machining Centre

The TMT TBV-1100 CNC Vertical Machining Centre is a high-performance machine engineered for heavy-duty cutting, precision accuracy, and long-term reliability. Built with a rigid box-way structure and advanced spindle technology, it delivers exceptional stability and consistent machining performance across demanding production environments.

Designed for efficiency and versatility, the TBV-1100 combines robust construction with modern control systems, making it ideal for workshops requiring high accuracy, repeatability, and productivity.

Key Features

• Rigid Box Way Construction – Three-axis box ways provide superior rigidity, vibration dampening, and stability for heavy cutting applications.
• High-Precision Spindle System – Reinforced spindle with angular contact bearings ensures excellent accuracy and minimal vibration (±2μm).
• Thermal Stability – Integrated oil cooling system reduces thermal displacement for consistent machining accuracy.
• Advanced Quality Control – Components inspected via 3D CMM, with final laser calibration and ball bar testing.
• Automatic Lubrication System – Ensures consistent oil flow across slideways, reducing wear and eliminating stick-slip issues.
• Flexible Spindle Options – Available in belt drive, gear drive (high torque), or direct drive (high speed and finish).
• Efficient Chip Management – Integrated chip flushing system improves chip evacuation and machining efficiency.

Standard Specifications

• Table Size: 1300 x 600 mm
• Table Load Capacity: 1000 kg
• X-Axis Travel: 1100 mm
• Y-Axis Travel: 610 mm
• Z-Axis Travel: 610 mm
• Spindle Speed: 8000 RPM
• Spindle Taper: BT-40
• Spindle Motor: 11 / 15 kW
• Rapid Feedrate (X/Y/Z): 18 / 18 / 15 m/min
• Tool Magazine: 24 Tools (Arm Type)
• Max Tool Weight: 7 kg
• Tool Change Time: 1.6 sec

Specifications subject to change without notice.

Optional Features

• Higher spindle speeds (10,000 – 15,000 RPM)
• Gearbox spindle for high torque machining
• Through-Spindle Coolant (CTS)
• 30–40 Tool Magazine Capacity
• Optical Linear Scales for enhanced accuracy
• 4th Axis / Rotary Table Compatibility
• High Pressure Coolant Systems

Applications

• General machining and jobbing work
• Heavy-duty cutting operations
• Precision component manufacturing
• Automotive and engineering industries

Why Choose the TBV-1100?

• Rugged box-way design for heavy material removal
• High precision and repeatability
• Excellent thermal stability for long machining cycles
• Flexible configuration options for various applications
• Built for reliability in demanding production environments
