TBV 1572 Vertical Machining Center (Boxway)

TMT TBV-1572 CNC Vertical Machining Centre

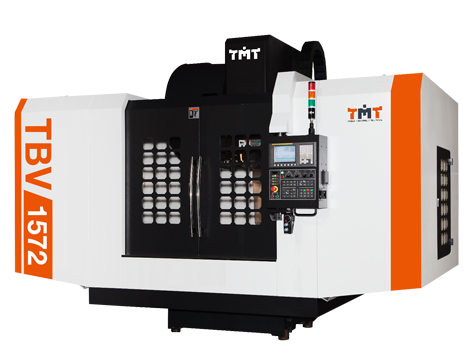

The TMT TBV-1572 CNC Vertical Machining Centre is a large-capacity, heavy-duty box-way machine designed for maximum rigidity, high torque cutting, and precision machining of larger workpieces. With extended X-axis travel and a BT-50 spindle as standard, it is built for demanding production environments where strength, stability, and accuracy are essential.

Engineered for continuous heavy cutting, the TBV-1572 combines robust mechanical construction with advanced thermal control and precision inspection systems to ensure consistent performance across long machining cycles.

Key Features

• Heavy-Duty Box Way Construction – Provides maximum rigidity, vibration dampening, and stability for aggressive cutting.
• BT-50 High Torque Spindle – Angular contact bearing design ensures high accuracy and minimal vibration (±2μm).
• Thermal Stability – Integrated spindle oil cooling reduces thermal displacement during long runs.
• Precision Inspection – CMM, laser calibration, and ball bar testing ensure repeatability and accuracy.
• Automatic Lubrication System – Maintains smooth axis movement and reduces wear over time.
• Flexible Spindle Options – Available in belt drive, direct drive (fine finish), or gear-driven high torque configurations.
• Efficient Chip Evacuation – Multiple flushing nozzles improve chip removal during heavy cutting operations.

Standard Specifications

• Table Size: 1550 x 700 mm
• Table Load Capacity: 1500 kg
• X-Axis Travel: 1500 mm
• Y-Axis Travel: 720 mm
• Z-Axis Travel: 680 mm
• Spindle Speed: 6000 RPM (Optional 8000 – 15,000 RPM)
• Spindle Taper: BT-50
• Spindle Motor: 15 / 18.5 kW
• Rapid Feedrate (X/Y/Z): 18 / 18 / 15 m/min (Optional 24 / 24 / 15)
• Tool Magazine: 24 Tools (Arm Type)
• Max Tool Weight: 15 kg
• Tool Change Time: 3.5 sec

Specifications subject to change without notice.

Optional Features

• High-speed spindle upgrades (10,000 – 15,000 RPM)
• Gearbox spindle for high torque machining
• Through-Spindle Coolant (CTS)
• 30–40 Tool Magazine Capacity
• Optical Linear Scales for improved accuracy
• 4th Axis / Rotary Table Interface
• High Pressure Coolant Systems

Applications

• Large component machining
• Heavy-duty roughing and finishing operations
• Toolmaking and industrial engineering
• Automotive and heavy manufacturing industries

Why Choose the TBV-1572?

• Maximum rigidity for heavy-duty machining
• Extended X-axis travel for large workpieces
• BT-50 spindle for high torque cutting performance
• Excellent thermal stability for long production cycles
• Built for precision, strength, and continuous operation
