FFG-DMC DM65V/40 (BBT50) Vertical Machining Center

$0.00
In Stock
AVAILABILITY
International Warehouse — 2 To 3 Months In Stock

DOWNLOADABLE BROCHURE BELOW IMAGES

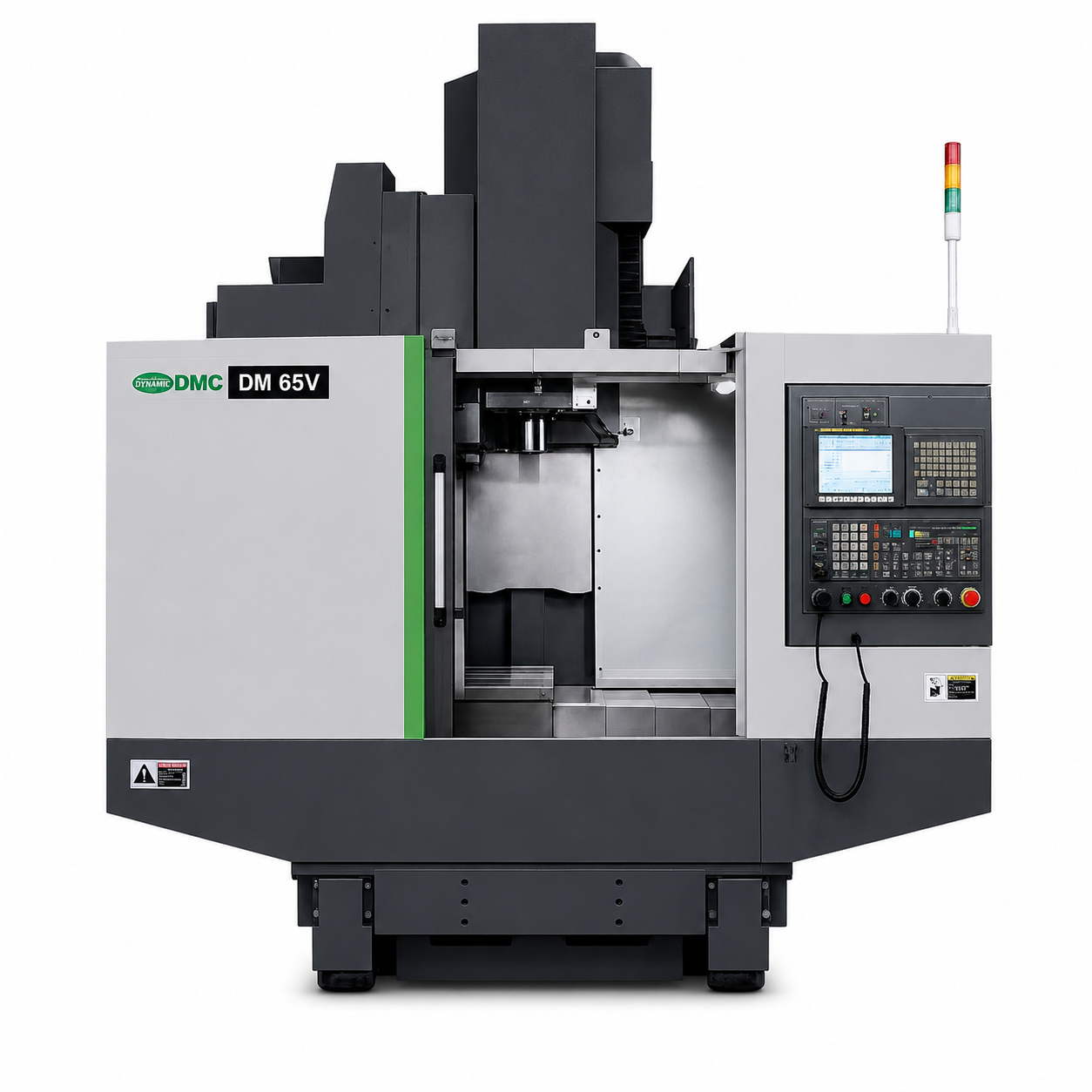

FFG DMC DM 65V Vertical Machining Centre

The FFG DMC DM 65V Vertical Machining Centre is a heavy-duty high-performance machining centre built for large workpieces, aggressive cutting conditions, and demanding industrial production environments.

Designed with roller guideways and a rigid machine structure, the DM 65V delivers exceptional stability, accuracy, and machining efficiency.

Featuring generous X/Y/Z travels of 1,280 x 670 x 640 mm and a large 1,400 x 700 mm table with 1,500 kg load capacity, the DM 65V is ideal for machining large steel, cast iron, and alloy components.

Available with BBT40 or optional BBT50 spindle configurations, the machine offers spindle speeds up to 12,000 RPM or heavy-duty torque performance with optional gearbox configurations.

Key Features

  • Large-capacity heavy-duty machining centre
  • 1,280 x 670 x 640 mm axis travel
  • Massive 1,400 x 700 mm table
  • 1,500 kg table load capacity
  • BBT40 or optional BBT50 spindle
  • Optional 12,000 RPM spindle configuration
  • Roller guideways for superior rigidity
  • Designed for high-performance industrial machining

Machine Specifications

  • Rapid Traverse: 36 / 36 / 30 m/min
  • Tool Capacity: 30 Tools (Optional 40)
  • Spindle Power: 11 / 15 kW
  • Maximum Tool Weight: 15 kg
  • Machine Weight: 7,500 kg



(WTC-FFG-DMC-DM65V)

SKU WTC-FFG-DMC-DM65V
Brand FFG-DMC
