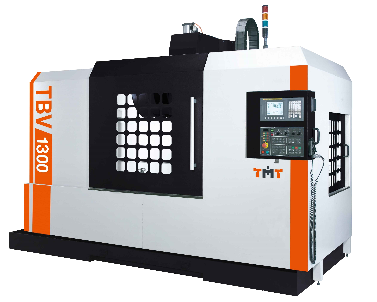

TBV 1300 Vertical Machining Center (Boxway) (Price is Starting From)

TMT Vertical Machining Centres (VMC)

The TMT Vertical Machining Centres (VMC) are engineered for high-performance machining, delivering exceptional cutting efficiency, precision, and reliability. Built with rugged construction and advanced engineering, TMT VMCs allow you to increase productivity while reducing operating costs in demanding manufacturing environments.

Designed to handle both heavy-duty and precision machining applications, these machines provide outstanding rigidity, accuracy, and long-term stability.

Key Features

• Rigid Machine Construction – Box-type structure with reinforced rib design ensures maximum stability and vibration resistance.
• Three-Axis Box Ways – Provides superior rigidity and precision for heavy and accurate machining operations.
• Optimised Cutting Efficiency – Engineered to maximise material removal while maintaining accuracy and tool life.
• Oil Cooling System – Cooling tubes connected to the spindle motor adaptor and spindle reduce thermal displacement for consistent machining accuracy.

Spindle Performance

• Box Type Spindle Design – Rigid construction for enhanced stability and cutting performance.
• Angular Contact Bearings – Ensures high spindle rigidity and precision machining capability.
• Low Vibration – Minimum dynamic vibration of ±2μm for superior surface finish.
• Optional Configurations:
  • 2-Speed Gear Type Spindle – High torque, high efficiency, low noise (TBV-1685 / 1885 / 2085)
  • Gear Type Spindle – 4,500 / 6,000 RPM for heavy cutting applications
  • Direct Drive Spindle – Reduced vibration and improved surface finish

Lubrication System

• Automatic Volume Lubrication – Ensures consistent oil delivery to all slideways.
• Anti-Stick Design – Eliminates sticking issues on slideways.
• Pressure Relief Oil Grooves – Prevents floating caused by excessive oil pressure.

Precision & Inspection

• 3D Coordinate Measuring (CMM) – All structural components are precisely inspected for assembly accuracy.
• Laser Calibration & Ball Bar Testing – Ensures high repeatability and positioning accuracy.

Chip & Coolant Management

• Powerful Chip Flushing System – Multiple nozzles efficiently remove chips during machining.
• Coolant Through Spindle (Optional) – Improves cooling performance for various materials and cutting conditions.

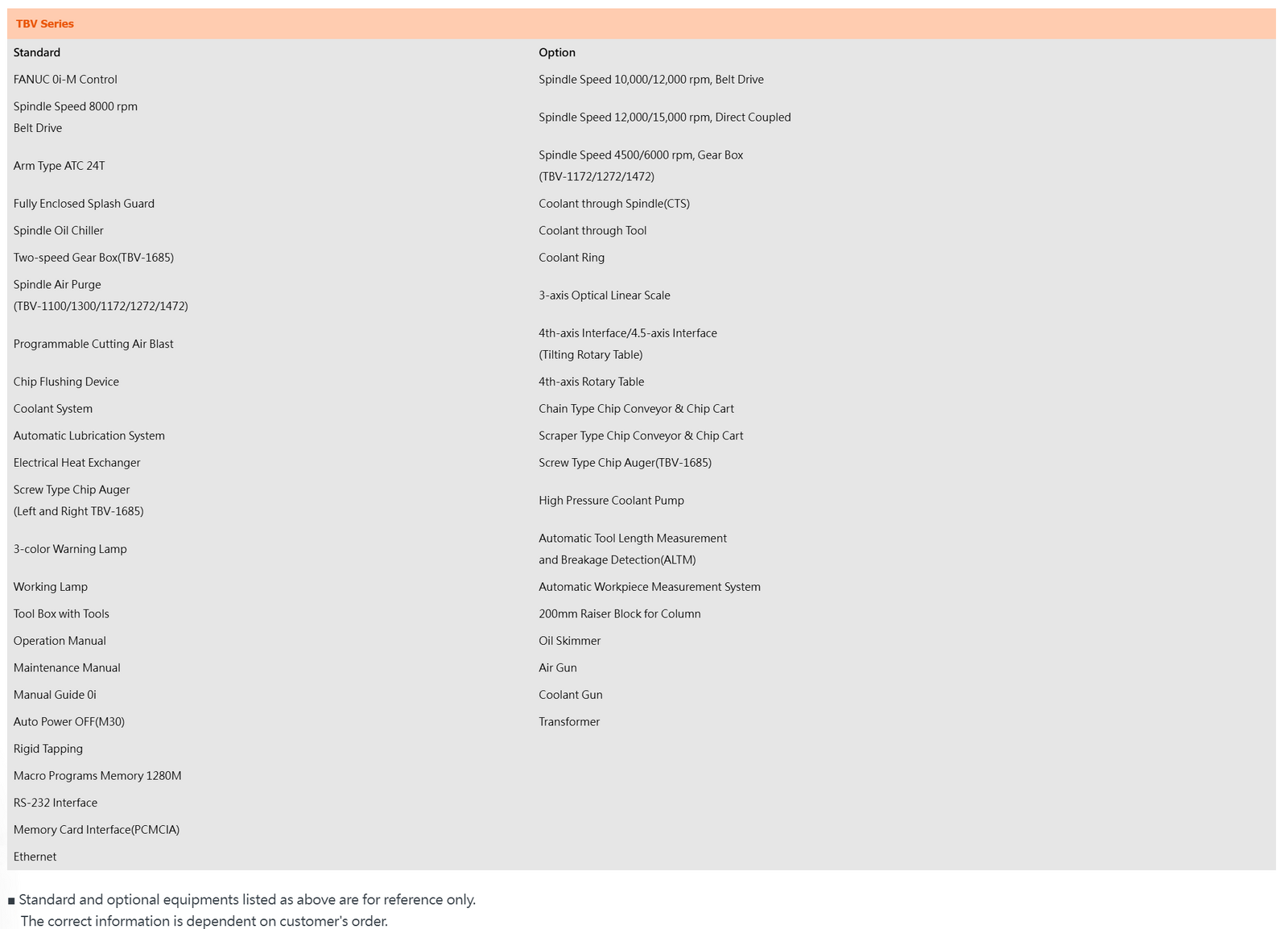

Optional Features

• Tool Magazine (30 / 40 Tools)
• Optical Scale for Enhanced Accuracy
• Coolant Through Spindle
• Gear or Direct Drive Spindle Options

Applications

• Heavy-duty machining
• Precision component manufacturing
• General engineering and production work
• High-efficiency CNC milling operations
