TBV 1885 Vertical Machining Center (Boxway)

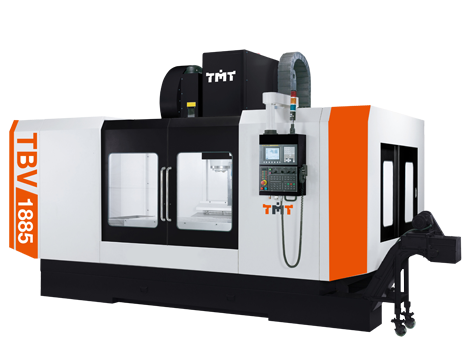

TMT TBV-1885 CNC Vertical Machining Centre

The TMT TBV-1885 CNC Vertical Machining Centre is a large-capacity, heavy-duty box-way machine engineered for maximum rigidity, high torque machining, and precision performance on large workpieces. With extended X-axis travel and a wide table, it is built for demanding applications requiring stability, power, and consistent accuracy.

Featuring a BT-50 gearbox spindle and reinforced machine structure, the TBV-1885 is ideal for heavy material removal and long production runs where reliability and repeatability are critical.

Key Features

• Heavy-Duty Box Way Construction – Three-axis box ways provide exceptional rigidity, vibration dampening, and stability for aggressive cutting operations.
• BT-50 2-Speed Gear Type Spindle – High-torque gearbox spindle delivers powerful cutting performance with low noise and high efficiency.
• High-Precision Spindle Design – Rigid spindle with angular contact bearings ensures minimal vibration (±2μm) and excellent machining accuracy.
• Thermal Stability – Integrated oil cooling system reduces thermal displacement during long machining cycles.
• Advanced Quality Control – Verified via CMM inspection, laser calibration, and ball bar testing for superior repeatability.
• Automatic Lubrication System – Volume-type lubrication ensures consistent oil flow and reduced wear.
• Efficient Chip Evacuation – Multi-nozzle chip flushing improves chip removal during heavy operations.

Standard Specifications

• Table Size: 1900 x 800 mm
• Table Load Capacity: 2200 kg
• X-Axis Travel: 1800 mm
• Y-Axis Travel: 850 mm
• Z-Axis Travel: 750 mm
• Spindle Speed: 6000 RPM (Gear Type)
• Spindle Taper: BT-50
• Spindle Motor: 15 / 18.5 kW (Optional up to 22 kW)
• Rapid Feedrate (X/Y/Z): 15 / 15 / 15 m/min
• Tool Magazine: 24 Tools (Arm Type)
• Max Tool Weight: 15 kg
• Tool Change Time: 3.5 sec

Specifications subject to change without notice.

Optional Features

• Gear or Direct Drive Spindle Configurations
• Higher Speed Spindle Options (Up to 15,000 RPM)
• Through-Spindle Coolant (CTS)
• 30–40 Tool Magazine Capacity
• Optical Linear Scales for Increased Accuracy
• 4th / 5th Axis Interface Compatibility
• High Pressure Coolant Systems
• Chip Conveyor and Auger Systems

Applications

• Large component machining
• Heavy-duty roughing and finishing
• General engineering and fabrication
• Automotive and industrial manufacturing

Why Choose the TBV-1885?

• Extended travels for large workpieces
• High torque gearbox spindle for heavy cutting
• High load capacity for demanding applications
• Rigid box-way construction for stability and accuracy
• Built for long-term reliability in production environments
