TBV 2085 Vertical Machining Center (Boxway)

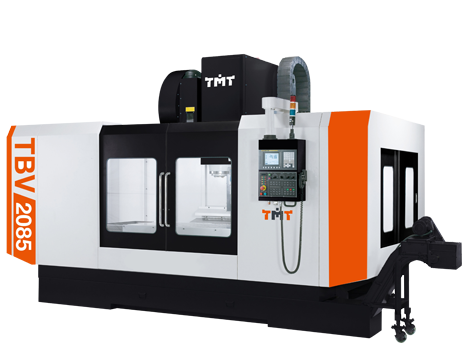

TMT TBV-2085 CNC Vertical Machining Centre

The TMT TBV-2085 CNC Vertical Machining Centre is the largest model in the TBV box-way series, engineered for maximum rigidity, extreme cutting power, and precision machining of large-scale components. With extended X-axis travel up to 2000mm and a high-capacity table, it is purpose-built for heavy-duty industries requiring stability, accuracy, and consistent performance under high loads.

Equipped with a BT-50 gearbox spindle and reinforced structure, the TBV-2085 delivers high torque machining capability while maintaining tight tolerances over long production cycles.

Key Features

• Heavy-Duty Box Way Construction – Three-axis box ways provide exceptional rigidity, vibration dampening, and stability for aggressive cutting.
• BT-50 2-Speed Gear Type Spindle – High-efficiency gearbox spindle delivers strong torque output with low noise, ideal for heavy machining.
• High-Precision Spindle Design – Reinforced spindle with angular contact bearings ensures minimal vibration (±2μm) and consistent accuracy.
• Thermal Stability – Integrated oil cooling system reduces thermal displacement during extended machining cycles.
• Advanced Precision Inspection – Verified using CMM, laser calibration, and ball bar testing for excellent repeatability.
• Automatic Lubrication System – Volume-type lubrication ensures consistent oil flow and reduced wear.
• Efficient Chip Evacuation – Multi-nozzle flushing system improves chip removal during heavy operations.

Standard Specifications

• Table Size: 2100 x 800 mm
• Table Load Capacity: 2400 kg
• X-Axis Travel: 2000 mm
• Y-Axis Travel: 850 mm (Optional 1000 mm)
• Z-Axis Travel: 750 mm
• Spindle Speed: 6000 RPM (Gear Type)
• Spindle Taper: BT-50
• Spindle Motor: 15 / 18.5 kW (Optional up to 22 kW)
• Rapid Feedrate (X/Y/Z): 15 / 15 / 12 m/min
• Tool Magazine: 24 Tools (Arm Type)
• Max Tool Weight: 15 kg
• Tool Change Time: 3.5 sec

Specifications subject to change without notice.

Optional Features

• Gear or Direct Drive Spindle Configurations
• Higher Speed Spindle Options (Up to 15,000 RPM)
• Through-Spindle Coolant (CTS)
• 30–40 Tool Magazine Capacity
• Optical Linear Scales for improved accuracy
• 4th / 5th Axis Interface Compatibility
• High Pressure Coolant Systems
• Chip Conveyor and Auger Systems

Applications

• Large-scale component machining
• Heavy-duty roughing and finishing
• General engineering and fabrication
• Automotive, mining, and industrial manufacturing

Why Choose the TBV-2085?

• Largest travels in the TBV range
• Maximum table capacity for heavy workpieces
• High torque gearbox spindle for extreme cutting conditions
• Exceptional rigidity and thermal stability
• Designed for continuous, high-load production environments
