TLV 1000 Verical Machining Center (Linear)

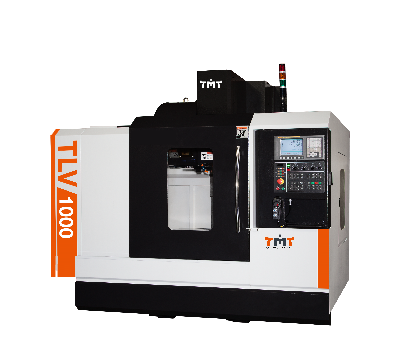

TMT TLV-1000 CNC Vertical Machining Centre (Linear Guide)

The TMT TLV-1000 CNC Vertical Machining Centre is a high-speed, linear guideway machine designed for precision machining, fast cycle times, and efficient production. With increased X-axis travel compared to the TLV-850II, this model is ideal for machining longer components while maintaining excellent accuracy and surface finish.

Built with a rigid structural design, high-speed spindle, and advanced thermal stability systems, the TLV-1000 delivers consistent performance across a wide range of machining applications.

Key Features

• Linear Guideway System (3-Axis) – Provides fast movement, low friction, and high positioning accuracy for high-speed machining.
• High-Speed Spindle – 10,000 RPM cartridge-type spindle delivers excellent surface finish and machining precision.
• High Rigidity Structure – Reinforced column, wide base, and ribbed saddle ensure stability and vibration resistance.
• Rapid Traverse Performance – Up to 36 m/min feedrates reduce cycle times and increase productivity.
• Optional Dual Pallet APC System – Improves efficiency by reducing non-cutting time.
• Thermal Stability – Spindle oil chiller maintains consistent temperature and machining accuracy.
• Optimised Tool Magazine Design – Base-mounted design reduces vibration and improves accuracy.
• Automatic Lubrication System – Ensures smooth operation and extends machine life.

Standard Specifications

• Table Size: 1150 x 530 mm
• Table Load Capacity: 500 kg
• X-Axis Travel: 1000 mm
• Y-Axis Travel: 530 mm
• Z-Axis Travel: 580 mm
• Spindle Speed: 10,000 RPM
• Spindle Taper: BT-40
• Spindle Motor: 11 / 15 kW
• Rapid Feedrate (X/Y/Z): 36 / 36 / 30 m/min
• Tool Magazine: 24 Tools (Arm Type)
• Max Tool Weight: 7 kg
• Tool Change Time: 2.0 sec
• Controller: FANUC 0i-M

Specifications subject to change without notice.

Optional Features

• 12,000 RPM Spindle Upgrade (Belt or Direct Drive)
• Through-Spindle Coolant (CTS)
• 4th Axis / Rotary Table Interface
• Optical Linear Scales for improved accuracy
• Automatic Pallet Changer (APC)
• High Pressure Coolant System
• Chip Conveyor Systems (Chain or Scraper Type)

Applications

• Precision component machining
• High-speed production environments
• General engineering and jobbing work
• Automotive and light manufacturing

Why Choose the TLV-1000?

• Extended X-axis travel for longer components
• High-speed linear guideway design for faster machining
• Excellent surface finish and precision performance
• Compact and efficient footprint
• Ideal balance of speed, accuracy, and productivity
