TLV 850 Vertical Machining Center (Linear)

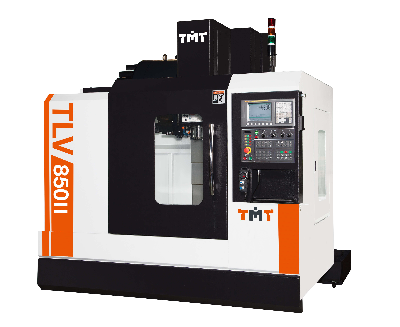

TMT TLV-850II CNC Vertical Machining Centre (Linear Guide)

The TMT TLV-850II CNC Vertical Machining Centre is a high-speed, linear guideway machine designed for precision machining, fast cycle times, and efficient production. Built for modern manufacturing environments, it combines rigid structural design with rapid traverse performance, making it ideal for both high-speed cutting and general-purpose machining.

With a compact footprint and advanced spindle technology, the TLV-850II is perfectly suited for workshops requiring accuracy, speed, and reliability in medium-sized component machining.

Key Features

• Linear Guideway Design (3-Axis) – Provides fast movement, high accuracy, and low friction for high-speed machining.
• High-Speed Spindle – 10,000 RPM cartridge-type spindle delivers excellent surface finish and machining precision.
• Rapid Traverse Performance – Up to 36 m/min rapid feedrates reduce cycle times and increase productivity.
• Rigid Structural Design – Reinforced column, wide base, and ribbed saddle ensure stability and vibration resistance.
• Optional Dual Pallet APC System – Reduces downtime and improves machine utilisation.
• Thermal Stability – Spindle oil chiller maintains consistent temperature and machining accuracy.
• Optimised Tool Magazine Mounting – Base-mounted magazine reduces vibration and improves accuracy.
• Automatic Lubrication System – Ensures consistent lubrication and extends machine life.

Standard Specifications

• Table Size: 1000 x 530 mm
• Table Load Capacity: 500 kg
• X-Axis Travel: 850 mm
• Y-Axis Travel: 530 mm
• Z-Axis Travel: 580 mm
• Spindle Speed: 10,000 RPM
• Spindle Taper: BT-40
• Spindle Motor: 11 / 15 kW
• Rapid Feedrate (X/Y/Z): 36 / 36 / 30 m/min
• Tool Magazine: 24 Tools (Arm Type)
• Max Tool Weight: 7 kg
• Tool Change Time: 2.0 sec
• Controller: FANUC 0i-M

Specifications subject to change without notice.

Optional Features

• 12,000 RPM Spindle Upgrade (Belt or Direct Drive)
• Through-Spindle Coolant (CTS)
• 4th Axis / Rotary Table Interface
• Optical Linear Scales for enhanced accuracy
• Automatic Pallet Changer (APC)
• High Pressure Coolant System
• Chip Conveyor Systems (Chain or Scraper Type)

Applications

• High-speed machining
• Precision component manufacturing
• General engineering and jobbing work
• Automotive and light production environments

Why Choose the TLV-850II?

• High-speed linear guide design for faster cycle times
• Excellent surface finish and precision capability
• Compact footprint for efficient workshop layout
• Ideal for medium-sized parts and high throughput production
• Perfect balance of speed, accuracy, and reliability
