TMT 1472 Vertical Machining Center (Boxway)

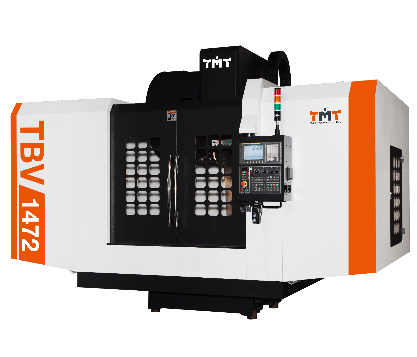

TMT TBV-1472 CNC Vertical Machining Centre

The TMT TBV-1472 CNC Vertical Machining Centre is a large-capacity, heavy-duty box-way machine designed for high rigidity, powerful cutting performance, and precision machining of medium to large components. With extended X-axis travel and a BT-50 spindle as standard, the TBV-1472 is built to handle demanding machining applications with ease.

Engineered for stability and long-term accuracy, this machine integrates advanced spindle design, thermal control systems, and precision inspection processes to deliver consistent performance in high-load production environments.

Key Features

• Heavy-Duty Box Way Construction – Three-axis box ways provide maximum rigidity, vibration absorption, and stability for aggressive cutting operations.
• BT-50 High-Torque Spindle – Rigid spindle with angular contact bearings ensures high accuracy and minimal vibration (±2μm).
• Thermal Stability – Integrated spindle oil cooling reduces thermal growth and maintains machining precision.
• Advanced Precision Inspection – Verified using CMM, laser calibration, and ball bar testing for excellent repeatability.
• Automatic Lubrication System – Ensures consistent lubrication, reduces wear, and eliminates stick-slip issues.
• Flexible Spindle Options – Available in belt drive, gear drive (high torque), or direct drive (high speed and finish).
• Efficient Chip Evacuation – Multiple flushing nozzles improve chip removal and machining efficiency.

Standard Specifications

• Table Size: 1550 x 700 mm
• Table Load Capacity: 1500 kg
• X-Axis Travel: 1400 mm
• Y-Axis Travel: 720 mm
• Z-Axis Travel: 680 mm
• Spindle Speed: 6000 RPM (Optional 8000 – 15,000 RPM)
• Spindle Taper: BT-50
• Spindle Motor: 15 / 18.5 kW
• Rapid Feedrate (X/Y/Z): 18 / 18 / 15 m/min (Optional 24 / 24 / 15)
• Tool Magazine: 24 Tools (Arm Type)
• Max Tool Weight: 15 kg
• Tool Change Time: 3.5 sec

Specifications subject to change without notice.

Optional Features

• Higher spindle speeds (10,000 – 15,000 RPM)
• Gearbox spindle for high torque machining
• Through-Spindle Coolant (CTS)
• 30–40 Tool Magazine Capacity
• Optical Linear Scales for enhanced accuracy
• 4th Axis / Rotary Table Compatibility
• High Pressure Coolant Systems

Applications

• Medium to large component machining
• Heavy-duty cutting and roughing operations
• Toolmaking and general engineering
• Automotive and industrial manufacturing

Why Choose the TBV-1472?

• Extended X-axis travel for larger workpieces
• BT-50 spindle for high torque and heavy cutting
• Rigid box-way construction for maximum stability
• High precision and repeatability
• Built for demanding, high-load production environments
