TMT TBV 1272 Vertical Machining Center (Boxway)

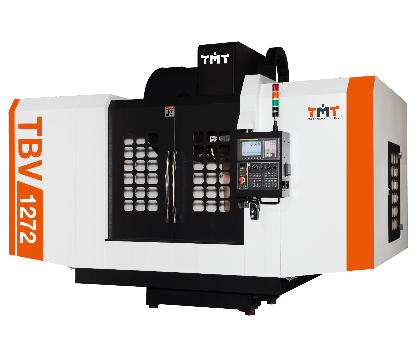

TMT TBV-1272 CNC Vertical Machining Centre

The TMT TBV-1272 CNC Vertical Machining Centre is a heavy-duty, box-way machine designed for high rigidity, precision accuracy, and increased machining capacity. Featuring extended X-axis travel and a larger table compared to smaller TBV models, the TBV-1272 is ideal for machining larger components while maintaining exceptional stability and cutting performance.

Built with a robust structure, advanced spindle technology, and thermal control systems, this machine delivers consistent accuracy and reliability in demanding production environments.

Key Features

• Three-Axis Box Way Construction – Provides superior rigidity, vibration dampening, and stability for heavy cutting applications.
• High-Precision Spindle System – Rigid spindle with angular contact bearings ensures high accuracy and minimal vibration (±2μm).
• Thermal Stability – Integrated spindle oil cooling system reduces thermal displacement for consistent machining accuracy.
• Advanced Quality Control – Components inspected via 3D CMM, with final verification using laser calibration and ball bar testing.
• Automatic Lubrication System – Ensures smooth axis movement, reduces wear, and eliminates stick-slip issues.
• Flexible Spindle Configurations – Available in belt drive (standard), gear drive (high torque), or direct drive (high speed and finish).
• Efficient Chip Management – Multiple flushing nozzles improve chip evacuation and machining efficiency.

Standard Specifications

• Table Size: 1350 x 700 mm
• Table Load Capacity: 1500 kg
• X-Axis Travel: 1200 mm
• Y-Axis Travel: 720 mm
• Z-Axis Travel: 610 mm (Optional 680 mm)
• Spindle Speed: 8000 RPM (Optional 10,000 – 15,000 RPM)
• Spindle Taper: BT-40 (Optional BT-50)
• Spindle Motor: 11 / 15 kW
• Rapid Feedrate (X/Y/Z): 18 / 18 / 15 m/min (Optional 24 / 24 / 15)
• Tool Magazine: 24 Tools (Arm Type)
• Max Tool Weight: 7 kg (BT-50: 15 kg)
• Tool Change Time: 1.6 sec

Specifications subject to change without notice.

Optional Features

• Higher spindle speeds (10,000 – 15,000 RPM)
• Gearbox spindle for high torque machining
• Through-Spindle Coolant (CTS)
• 30–40 Tool Magazine Capacity
• Optical Linear Scales for enhanced accuracy
• 4th Axis / Rotary Table Compatibility
• High Pressure Coolant Systems

Applications

• Medium to large component machining
• Heavy-duty cutting and material removal
• General engineering and jobbing work
• Automotive and industrial production

Why Choose the TBV-1272?

• Increased X-axis travel for larger workpieces
• Rigid box-way construction for heavy-duty machining
• High precision and repeatability
• Excellent thermal stability for long machining cycles
• Flexible configuration options for a wide range of applications
