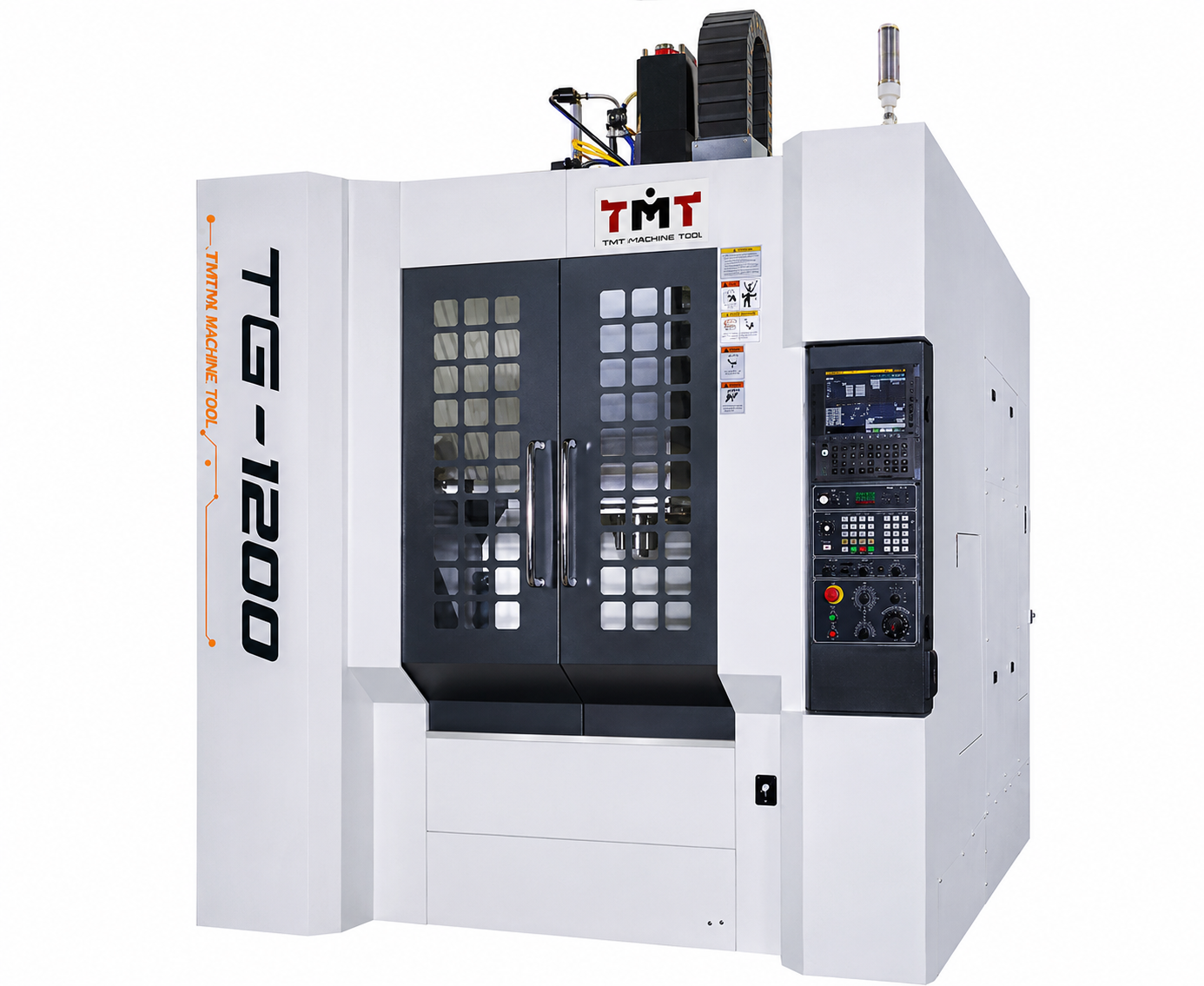

TMT TG Series TG-1200 Column Moving Gantry Type Machining Centre

The TMT TG-1200 is a rigid and high-capacity column moving gantry type machining centre designed for precision machining, finishing, and larger workpiece production. Built with a strong gantry-type structure, the TG-1200 delivers excellent cutting rigidity, stability, and machining accuracy for demanding manufacturing environments.

With 1200mm X-axis travel, 630mm Y-axis travel, and 520mm Z-axis travel, the TG-1200 provides generous machining capacity while maintaining efficient machine operation. The large 1700 x 650mm fixed table supports workpieces up to 1000kg, making it well suited for longer components, fixtures, and production machining applications.

The TG-1200 is equipped with a 10,000rpm BT-40 direct-drive spindle, helping reduce noise, vibration, and backlash while providing smooth and stable cutting performance. The servo-driven automatic tool magazine, high table load capacity, and rigid machine structure make the TG-1200 a practical solution for precision workshops and production facilities requiring reliable machining performance.

Key Features

  • Rigid column moving gantry type machine structure
  • High cutting rigidity for precision machining and finishing
  • Large fixed table suitable for long workpieces
  • 1000kg maximum table load capacity
  • BT-40 direct-drive spindle as standard
  • Direct-drive transmission helps reduce noise, vibration, and backlash
  • Servo-driven automatic tool magazine
  • 32-tool magazine capacity
  • Cutting area isolation to help protect the transmission system
  • Y-axis linear guide with chromate finish and anti-rust treatment
  • Optional spindle speed upgrades available
  • Suitable for precision finishing, larger parts, and production machining

Main Specifications

  • Model: TG-1200
  • Machine Type: Column Moving Gantry Type Machining Centre
  • X-Axis Travel: 1200mm
  • Y-Axis Travel: 630mm
  • Z-Axis Travel: 520mm
  • Table to Spindle Nose: 180 - 700mm
  • Maximum Work Area: 1200 x 600 x 300mm
  • Table Size: 1700 x 650mm
  • Maximum Table Load: 1000kg
  • Spindle Speed: 10,000rpm
  • Spindle Taper: BT-40
  • Spindle Transmission: Direct drive
  • Rapid Traverse: 36 / 36 / 36 m/min
  • Cutting Feedrate: 10,000mm/min
  • Tool Shank: BT-40
  • Pull Stud: MAS403-BT40-45
  • Magazine Type: Servo drive
  • Tool Capacity: 32 tools
  • Maximum Tool Length: 300mm
  • Maximum Tool Diameter: 76mm
  • Maximum Tool Weight: 7kg
  • Tool Change Time: 4 seconds tool-to-tool
  • X-Axis Servo Motor: 4.0kW
  • Y-Axis Servo Motor: 4.0kW
  • Z-Axis Servo Motor: 4.0kW
  • Spindle Motor: 7.5 / 11kW

Direct-Drive Spindle

The TG-1200 features a direct-drive spindle system designed to reduce vibration, noise, and backlash. This supports smooth cutting performance, improved surface finish, and stable machining accuracy. The spindle air curtain also helps prevent moisture and chips from entering the spindle area.

High Loading Capacity Fixed Table

The fixed table design provides strong workholding support, with a table size of 1700 x 650mm and a maximum load capacity of 1000kg. This makes the TG-1200 suitable for long workpieces, heavier fixtures, and larger production components.

Servo Drive Tool Magazine

The servo-driven automatic tool magazine provides fast and stable tool changes, with a tool-to-tool change time of approximately 4 seconds. The centre-mounted ATC design helps reduce overall machine width and supports efficient loading and unloading access.

Optional Equipment

  • 12,000rpm, 15,000rpm, or 20,000rpm spindle speed upgrade
  • HSK 50A tool magazine and spindle
  • HSK 63A tool magazine and spindle
  • SK-40 or CAT-40 tool magazine and spindle
  • NBT-40 or BBT-40 spindle
  • Working table lower 100mm option
  • Automatic tool length measurement with breakage detection
  • Optical scale
  • Rear type chip conveyor
  • Auto door
  • Coolant gun and air gun
  • 4th axis rotary table or 5th axis rotary and tilting table
  • Electrical cabinet air conditioner
  • Transformer or voltage stabilizer

The TMT TG-1200 is an excellent choice for manufacturers requiring a rigid, accurate, and high-capacity gantry-style machining centre for larger workpieces, precision finishing, and reliable production machining.
