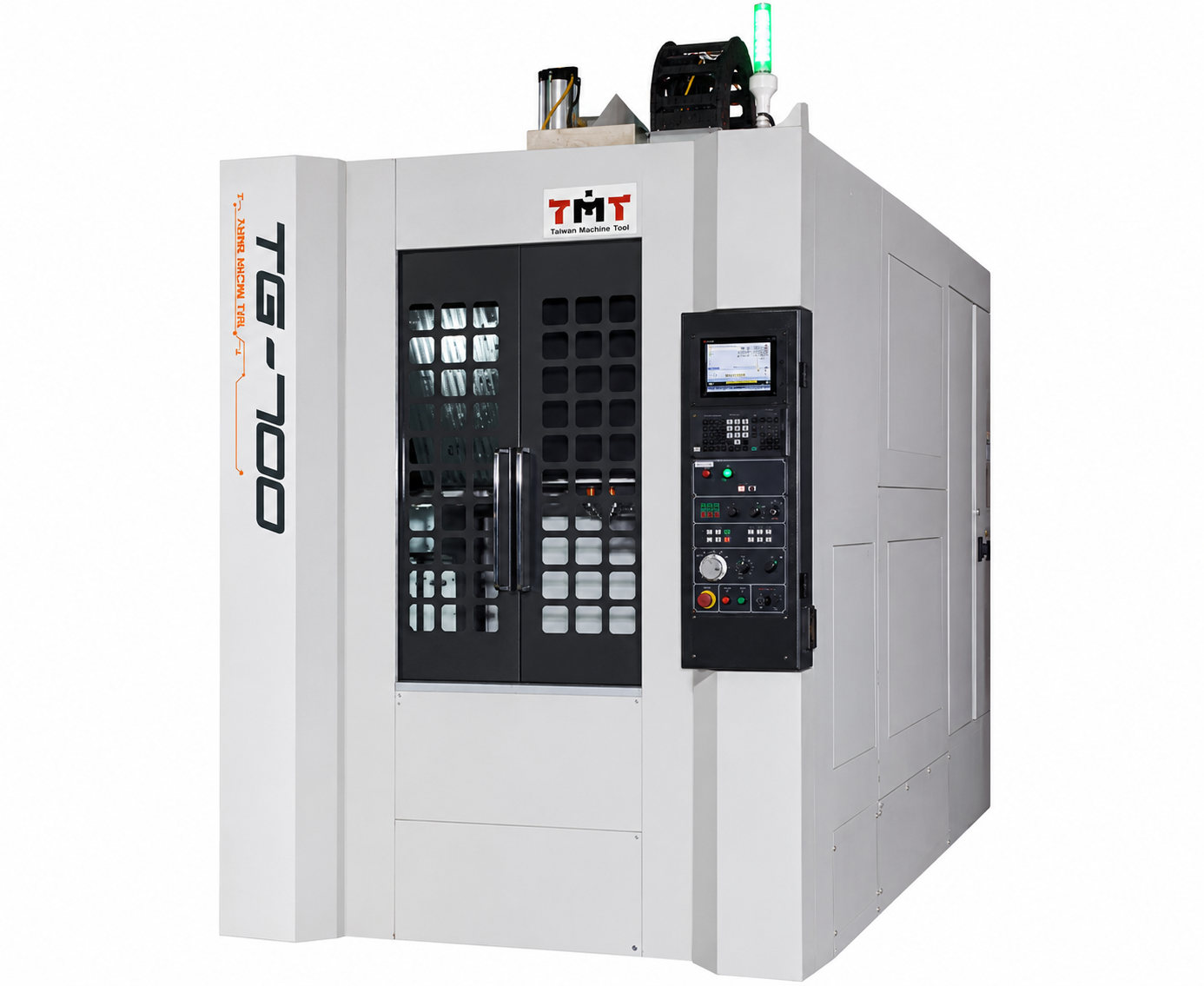

TMT TG 700 Gantry Machining Center

$0.00
In Stock
AVAILABILITY
International Warehouse — 2 To 3 Months In Stock

TMT TG Series TG-700 Column Travelling Gantry Machining Centre

The TMT TG-700 is a compact and highly capable column travelling gantry machining centre designed for precision machining, finishing, and general production applications. With its rigid gantry-style construction, the TG-700 provides excellent stability, accuracy, and machining performance while maintaining an efficient machine footprint.

Featuring a 700mm X-axis travel, 450mm Y-axis travel, and 420mm Z-axis travel, the TG-700 is well suited to workshops and manufacturers requiring reliable performance in a compact vertical machining platform. The large 1280 x 500mm table provides generous workholding capacity, while the 700kg table load allows for heavier components and fixtures.

The TG-700 is equipped with a 10,000rpm BT-40 direct-drive spindle, helping reduce vibration, noise, and backlash for improved surface finish and consistent cutting accuracy. Its high-speed rapid traverse rates and servo-driven tool magazine help reduce cycle times and improve productivity.

Key Features

  • Rigid column travelling gantry machine structure
  • Compact footprint with efficient machining capacity
  • Direct-drive spindle for reduced vibration and improved surface finish
  • High-speed rapid traverse on X, Y, and Z axes
  • Large table size for flexible workholding
  • 700kg maximum table load capacity
  • Servo-driven automatic tool magazine
  • Stable machining performance for precision components
  • Suitable for production machining, finishing, and general workshop use
  • Optional spindle speed upgrades and automation options available

Main Specifications

  • Model: TG-700
  • Machine Type: Column Travelling Gantry Machining Centre
  • X-Axis Travel: 700mm
  • Y-Axis Travel: 450mm
  • Z-Axis Travel: 420mm
  • Table Size: 1280 x 500mm
  • Maximum Table Load: 700kg
  • Spindle Speed: 10,000rpm
  • Spindle Taper: BT-40
  • Spindle Transmission: Direct drive
  • Rapid Traverse: 48 / 48 / 48 m/min
  • Cutting Feedrate: 10,000mm/min
  • Tool Magazine: Servo drive
  • Tool Capacity: 22 tools
  • Maximum Tool Length: 300mm
  • Maximum Tool Diameter: 100mm
  • Maximum Tool Weight: 4kg
  • Tool Change Time: 4 seconds
  • Spindle Motor: 5.5 / 7.5kW
  • X / Y / Z Servo Motors: 3.0kW each

Optional Equipment

  • 12,000rpm, 15,000rpm, or 20,000rpm spindle options
  • Alternative spindle taper options including HSK, SK, CAT, NBT, and BBT configurations
  • Coolant through spindle
  • Optical scales
  • Automatic tool length measurement system
  • Automatic pallet changer option
  • Rotary table option
  • Rear chip conveyor system

The TMT TG-700 is an excellent choice for manufacturers looking for a compact, rigid, and accurate machining centre with the flexibility to handle a wide range of machining applications.

(WTC-TMT-TG700)
