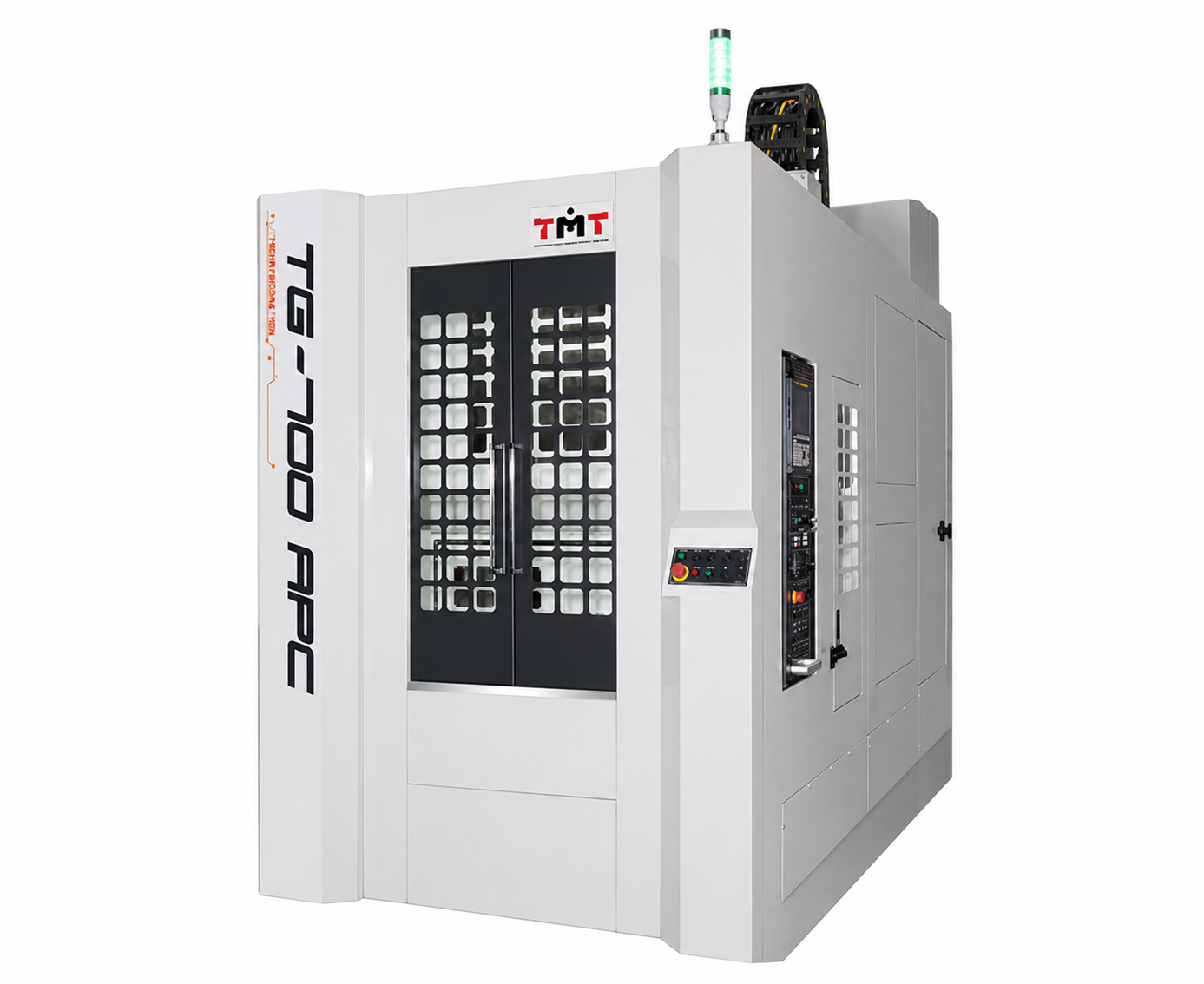

TMT TG Series TG-700 APC Column Travelling Gantry Machining Centre

The TMT TG-700 APC is a compact and highly productive column travelling gantry machining centre designed for precision machining, finishing, and high-efficiency production. Built with a rigid gantry-type structure and an integrated automatic pallet change system, the TG-700 APC is ideal for manufacturers looking to reduce loading time, improve machine utilisation, and maintain consistent machining accuracy.

With 700mm X-axis travel, 450mm Y-axis travel, and 420mm Z-axis travel, the TG-700 APC provides strong machining capability in a compact footprint. The automatic pallet changer allows one pallet to be loaded or unloaded while the machine continues production on the other, helping reduce downtime and increase overall productivity.

The machine is equipped with a 10,000rpm BT-40 direct-drive spindle, helping reduce vibration, noise, and backlash while delivering reliable cutting performance and improved surface finish. The servo-driven automatic tool magazine and high-speed rapid traverse rates further support efficient machining cycles across a wide range of production applications.

Key Features

  • Rigid column travelling gantry machine structure
  • Automatic pallet changer for reduced loading and unloading time
  • Compact footprint with high machine utilisation
  • Direct-drive spindle for reduced vibration, noise, and backlash
  • BT-40 spindle taper as standard
  • High-speed rapid traverse on X, Y, and Z axes
  • Servo-driven automatic tool magazine
  • Cutting area isolation to help protect the transmission system
  • Designed for precision finishing and multi-purpose machining
  • Optional spindle speed upgrades and machining accessories available

Main Specifications

  • Model: TG-700 APC
  • Machine Type: Column Travelling Gantry Machining Centre with APC
  • X-Axis Travel: 700mm
  • Y-Axis Travel: 450mm
  • Z-Axis Travel: 420mm
  • Table to Spindle Nose: 150 - 570mm
  • Maximum Work Area: 700 x 450 x 420mm
  • Table Size: 750 x 450mm
  • Maximum Table Load: 250kg x 2
  • T-Slot: T14 x 5
  • Spindle Speed: 10,000rpm
  • Spindle Taper: BT-40
  • Spindle Transmission: Direct drive
  • Rapid Traverse: 48 / 48 / 48 m/min
  • Cutting Feedrate: 10,000mm/min
  • Tool Shank: BT-40
  • Pull Stud: P40T-1 MAS403-45°
  • Magazine Type: Servo drive
  • Tool Capacity: 22 tools
  • Maximum Tool Length: 300mm
  • Maximum Tool Diameter: 100mm
  • Maximum Tool Weight: 4kg
  • Tool Change Time: 4 seconds tool-to-tool
  • X-Axis Servo Motor: 3.0kW
  • Y-Axis Servo Motor: 3.0kW
  • Z-Axis Servo Motor: 3.0kW
  • Spindle Motor: 5.5 / 7.5kW

Automatic Pallet Change System

The TG-700 APC is equipped with an automatic pallet change system designed to reduce workpiece loading time and improve machine utilisation. The pallet system uses a cam-type three-piece coupling design with a high-speed 180° rotary pallet change system, allowing fast and efficient pallet exchange for production environments.

Optional Equipment

  • 12,000rpm, 15,000rpm, or 20,000rpm spindle speed upgrade
  • 7.5 / 11kW spindle motor upgrade
  • HSK 50A tool magazine and spindle
  • HSK 63A tool magazine and spindle
  • SK-40 or CAT-40 tool magazine and spindle
  • NBT-40 or BBT-40 spindle
  • Automatic tool length measurement with breakage detection
  • Optical scale
  • Rear type chip conveyor
  • Auto door
  • Coolant gun and air gun
  • 4th axis rotary table or 5th axis rotary and tilting table
  • Electrical cabinet air conditioner
  • Transformer or voltage stabilizer

The TMT TG-700 APC is an excellent solution for manufacturers seeking a compact, rigid, and highly efficient machining centre with automatic pallet changing capability for improved productivity and reduced machine idle time.

(WTC-TMT-TG700-APC)
