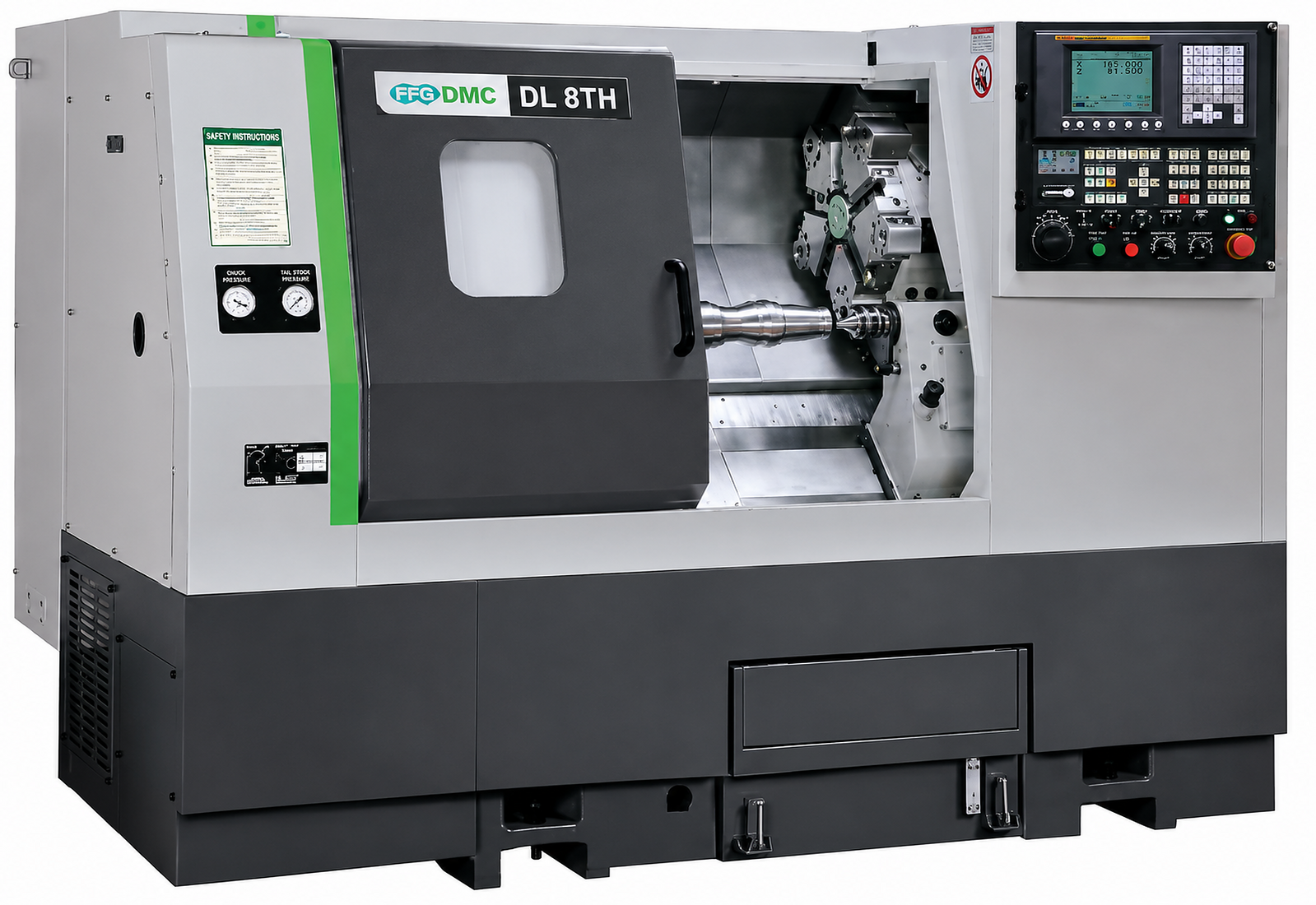

FFG DMC DL 8T / 8TH / 8TMH CNC Turning Centre

The FFG DMC DL 8T Series CNC Turning Centre is a high-performance, compact machine designed for precision machining and maximum productivity. Featuring a rigid 45° slant bed, powerful spindle, and fast indexing turret, this machine delivers excellent accuracy, stability, and efficiency across a wide range of turning and mill-turn applications.

Key Features

  • 45° Slant Bed Design – Ensures rigidity, stability, and efficient chip evacuation.
  • High Performance Spindle – Up to 4500 RPM for efficient machining.
  • Rapid Traverse Rates – Reduces cycle times and increases productivity.
  • Fast Turret Indexing – 0.2 second indexing for minimal downtime.
  • Flexible Tooling – Up to 12 tool stations depending on configuration.
  • Precision Linear Guideways – Smooth movement with high positioning accuracy.
  • Wide Saddle Design – Reduces vibration and improves surface finish.

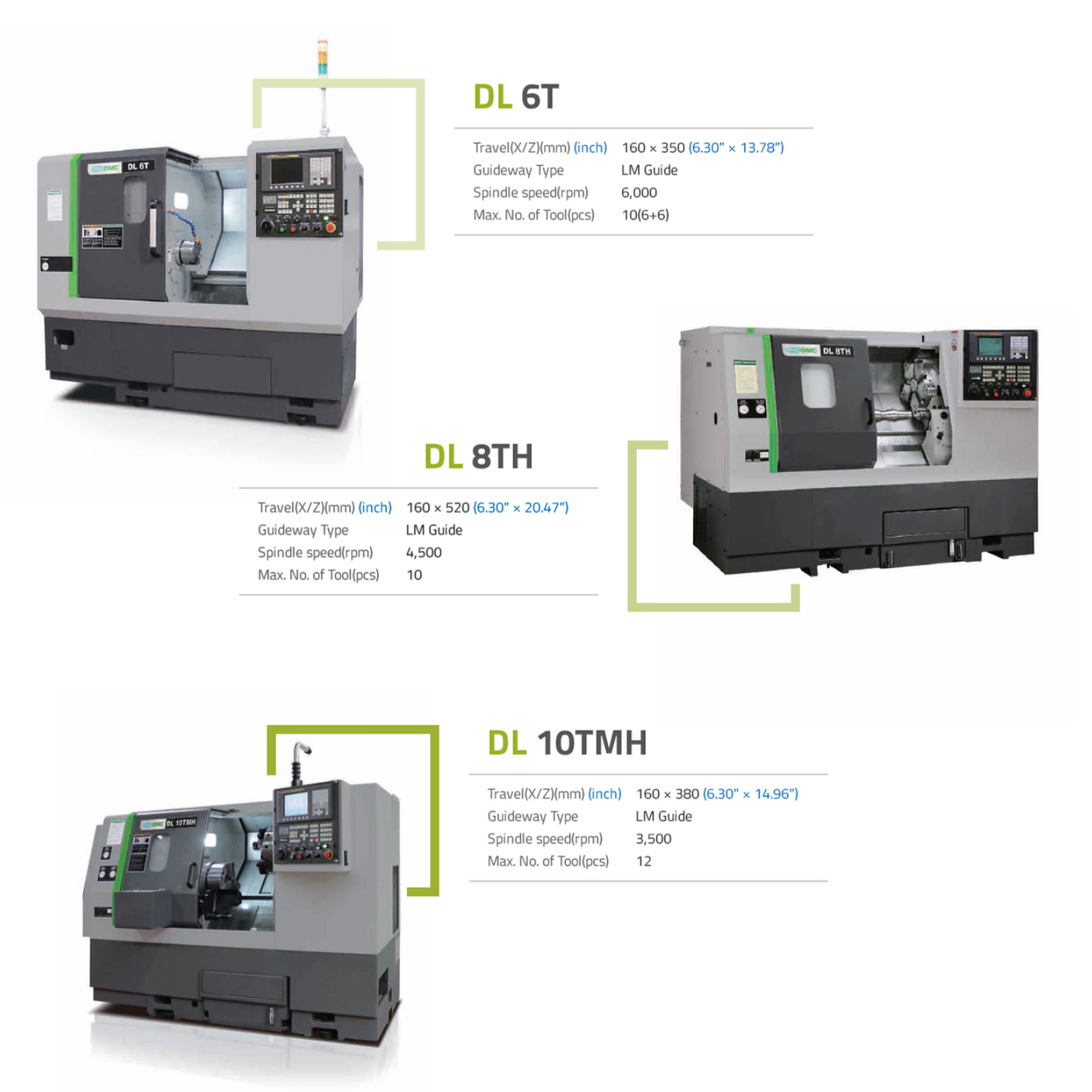

Model Options

DL 8T
Standard turning configuration
10 station turret
Maximum turning length: 300mm

DL 8TH
Extended bed version
10 station turret
Maximum turning length: 510mm

DL 8TMH
Mill-turn capability
12 station turret
Live tooling up to 5000 RPM
C-axis for complex machining

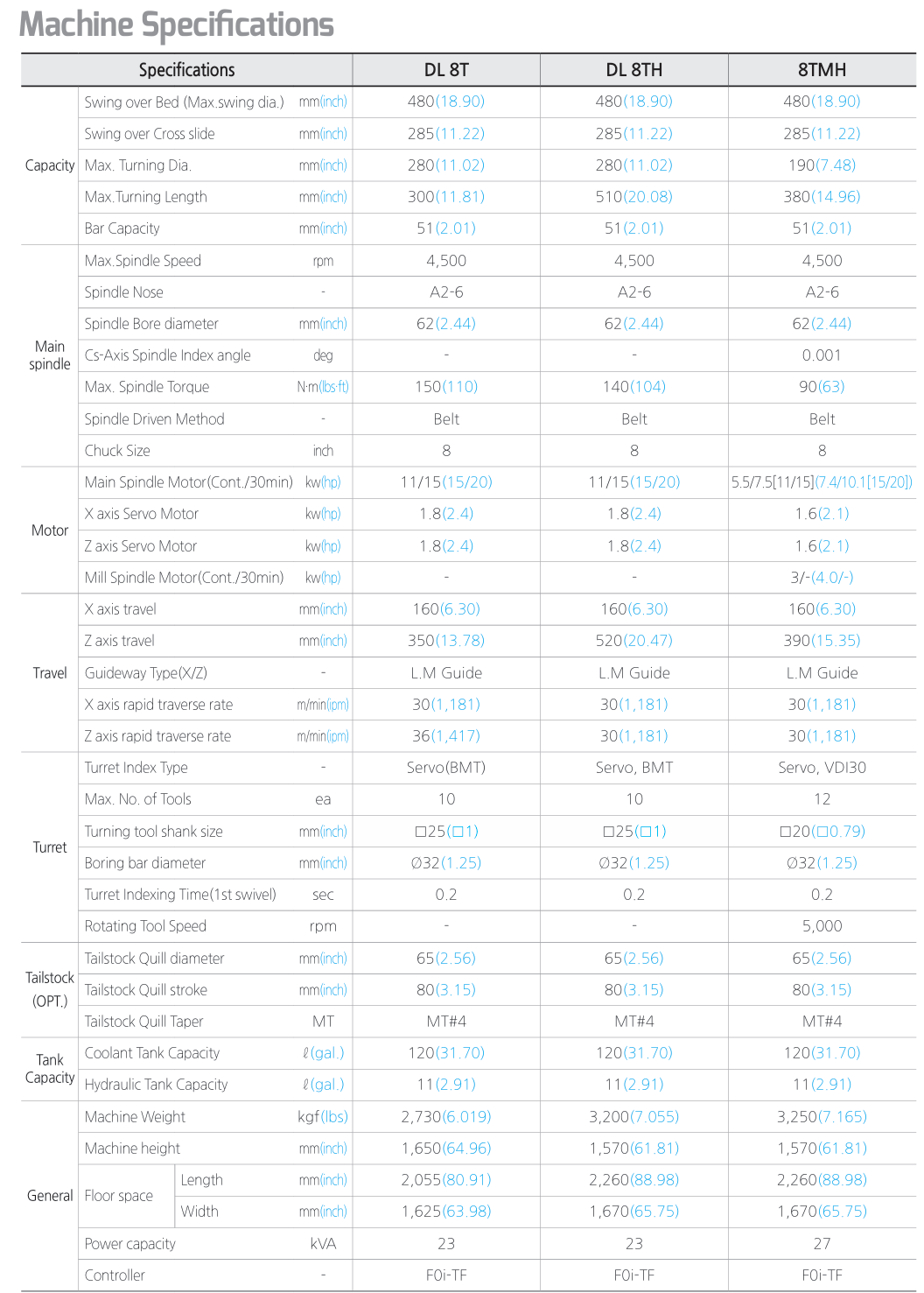

Capacity & Travels

  • Maximum Swing Over Bed: 480mm
  • Maximum Turning Diameter: 280mm (190mm on TMH)
  • X-Axis Travel: 160mm
  • Z-Axis Travel: 350mm / 520mm / 390mm (model dependent)
  • Bar Capacity: 51mm

Spindle Specifications

  • Maximum Spindle Speed: 4500 RPM
  • Spindle Nose: A2-6
  • Spindle Bore: 62mm
  • Maximum Torque: 150 Nm (8T)
  • Maximum Torque: 140 Nm (8TH)
  • Maximum Torque: 90 Nm (8TMH)
  • Motor Power: Up to 15 kW

Turret & Tooling

  • Servo Turret System
  • Tool Capacity: 10 or 12 stations depending on model
  • Tool Shank Size: 25mm (20mm on TMH)
  • Boring Bar Capacity: 32mm

Standard Equipment

  • Fanuc 0i-TF Control
  • Hydraulic Chuck with Soft Jaws
  • Coolant System with Filtration
  • Automatic Lubrication System
  • LED Work Light
  • Door Safety Interlock
  • USB & RS232 Connectivity

Optional Equipment

  • Bar Feeder or Automation Systems
  • Parts Catcher & Conveyor
  • High Pressure Coolant System
  • Oil Skimmer & Mist Collector
  • Tool Monitoring System

Why Choose This Machine

  • High-speed, high-precision machining capability
  • Compact footprint ideal for smaller workshops
  • Flexible configurations for diverse applications
  • Reliable Fanuc control system
  • Built for production efficiency and long-term performance

(WTC-FFG-DMC-DL8T)

SKU WTC-FFG-DMC-DL8T
Brand FFG-DMC

Be The First To Review This Product!

Help other Williams Tool Co users shop smarter by writing reviews for products you have purchased.

Write a product review

More From This Category

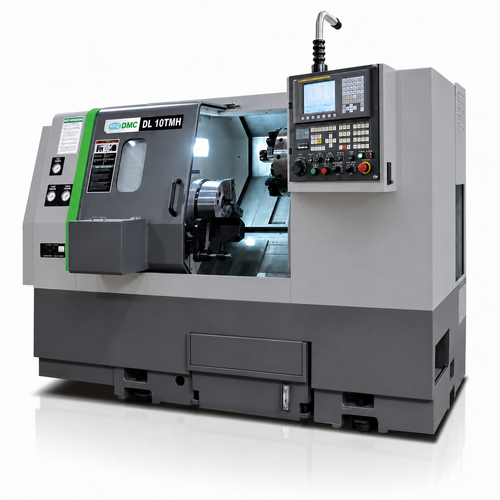

FFG-DMC-DL10T/10TH/10TMH

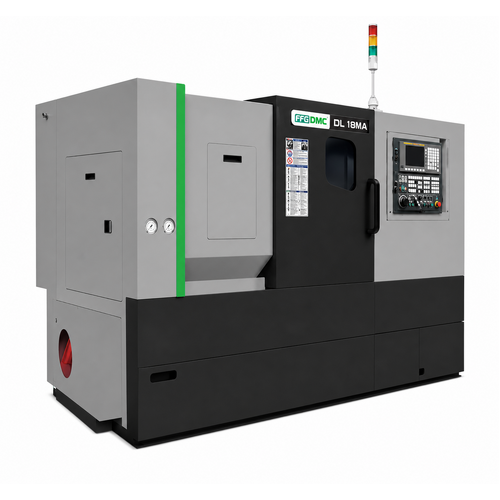

FFG-DMC-DL18MA/18MB

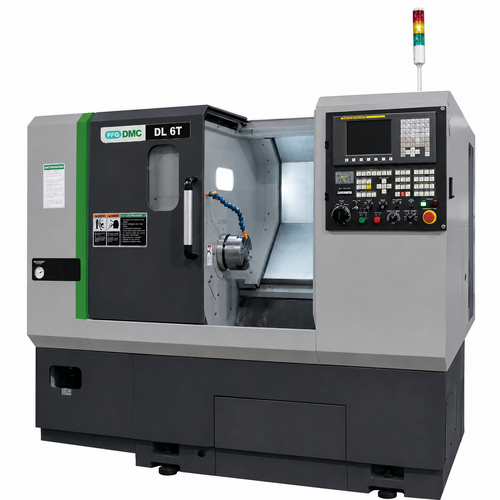

FFG-DMC-DL6T/6TH/6TMH
