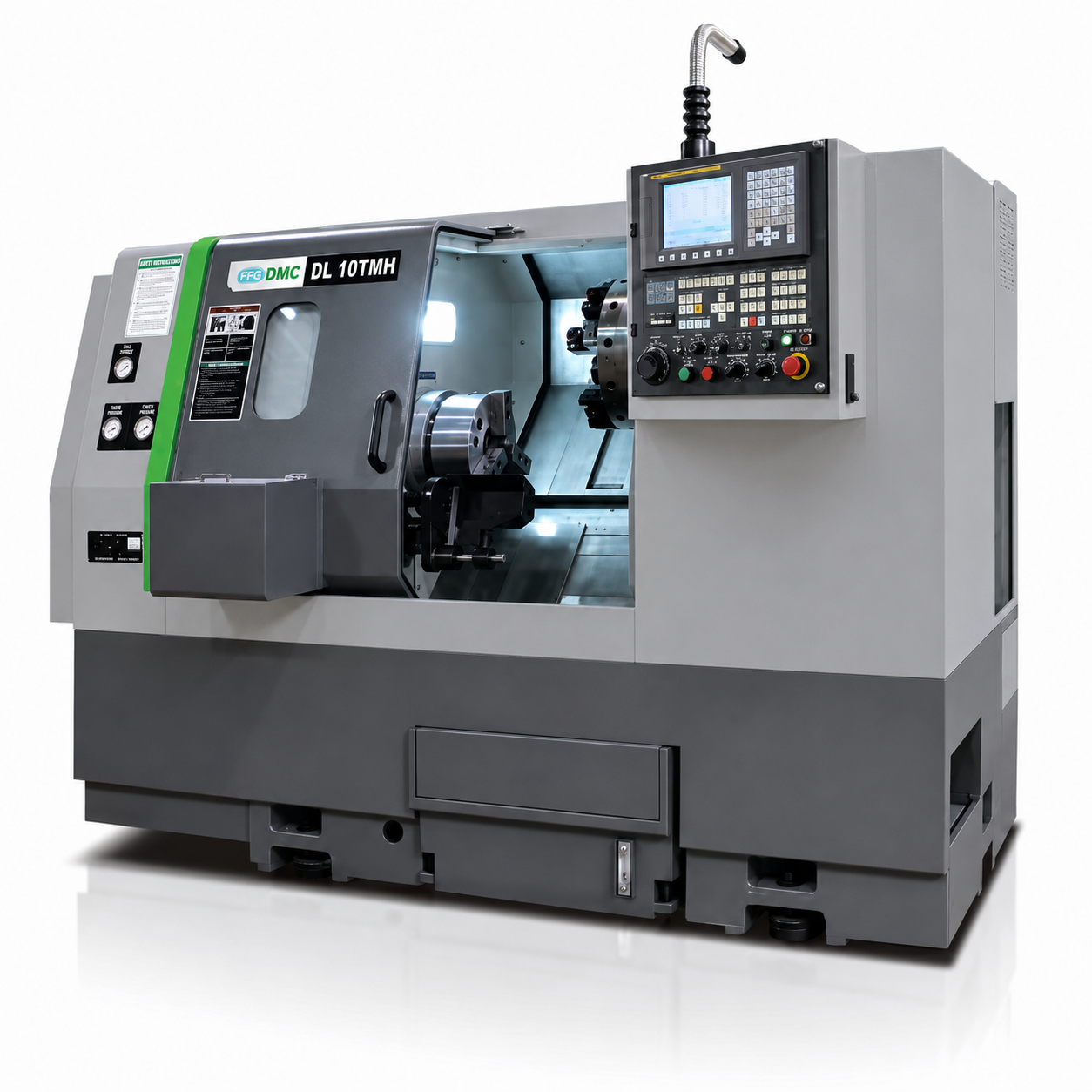

FFG DMC DL 10T / 10TH / 10TMH CNC Turning Centre

The FFG DMC DL 10T Series CNC Turning Centre is a heavy-duty, high-performance machine designed for high torque machining and larger workpieces. With a rigid 45° slant bed, powerful spindle, and stable cutting performance, this machine is ideal for demanding production environments requiring strength, precision, and reliability.

Key Features

  • 45° Slant Bed Design – Provides exceptional rigidity, stability, and efficient chip evacuation.
  • High Torque Spindle – Engineered for heavy-duty cutting applications.
  • Maximum Spindle Speed: Up to 3500 RPM
  • Rapid Traverse Rates – Improves cycle times and overall productivity.
  • Fast Turret Indexing – 0.2 second indexing for reduced downtime.
  • Flexible Tooling – Up to 12 tool stations depending on configuration.
  • Precision Linear Guideways – Ensures smooth motion and high positioning accuracy.
  • Wide Saddle Design – Minimises vibration and enhances surface finish quality.

Model Options

DL 10T
Standard turning configuration
10 station turret
Maximum turning length: 350mm

DL 10TH
Extended bed version
10 station turret
Maximum turning length: 485mm

DL 10TMH
Mill-turn capability
12 station turret
Live tooling up to 5000 RPM
C-axis for complex machining

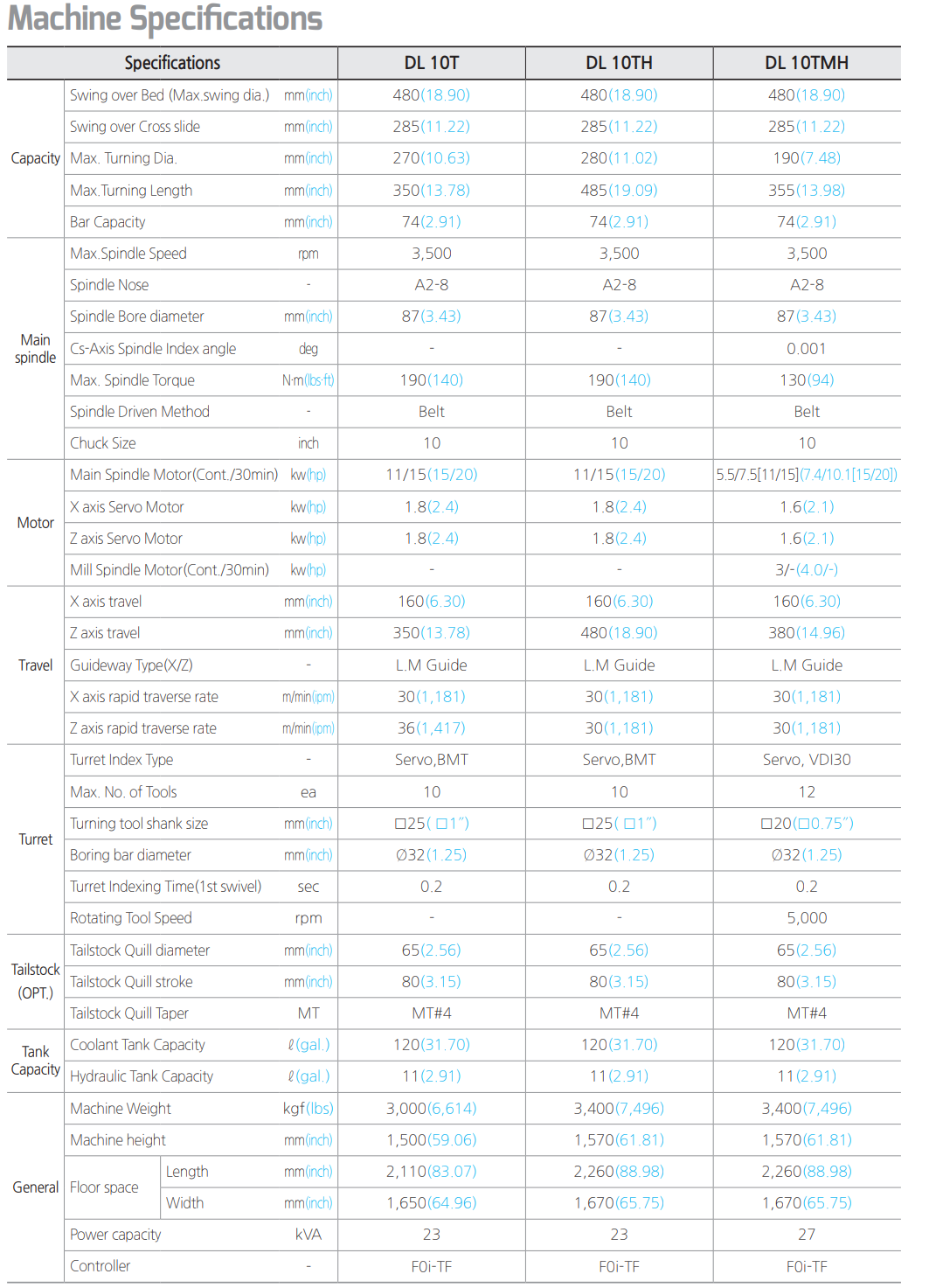

Capacity & Travels

  • Maximum Swing Over Bed: 480mm
  • Maximum Turning Diameter: 270–280mm (190mm on TMH)
  • X-Axis Travel: 160mm
  • Z-Axis Travel: 350mm / 480mm / 380mm (model dependent)
  • Bar Capacity: 74mm

Spindle Specifications

  • Maximum Spindle Speed: 3500 RPM
  • Spindle Nose: A2-8
  • Spindle Bore: 87mm
  • Maximum Torque: 190 Nm (10T / 10TH)
  • Maximum Torque: 130 Nm (10TMH)
  • Motor Power: Up to 15 kW

Turret & Tooling

  • Servo Turret System
  • Tool Capacity: 10 or 12 stations depending on model
  • Tool Shank Size: 25mm (20mm on TMH)
  • Boring Bar Capacity: 32mm

Standard Equipment

  • Fanuc 0i-TF Control
  • Hydraulic Chuck with Soft Jaws
  • Coolant System with Filtration
  • Automatic Lubrication System
  • LED Work Light
  • Door Safety Interlock
  • USB & RS232 Connectivity

Optional Equipment

  • Bar Feeder or Automation Systems
  • Parts Catcher & Conveyor
  • High Pressure Coolant System
  • Oil Skimmer & Mist Collector
  • Tool Monitoring System

Why Choose This Machine

  • High torque capability for larger and tougher materials
  • Stable and rigid cutting performance
  • Compact footprint for its machining capacity
  • Flexible configurations for turning or mill-turn applications
  • Reliable Fanuc control system for consistent operation

(WTC-FFG-DMC-DL10T)
