TMT TTL 10G Gang Type CNC Lathe

Email For Quote: sales@williamstoolco.com

$0.00
Sold Out

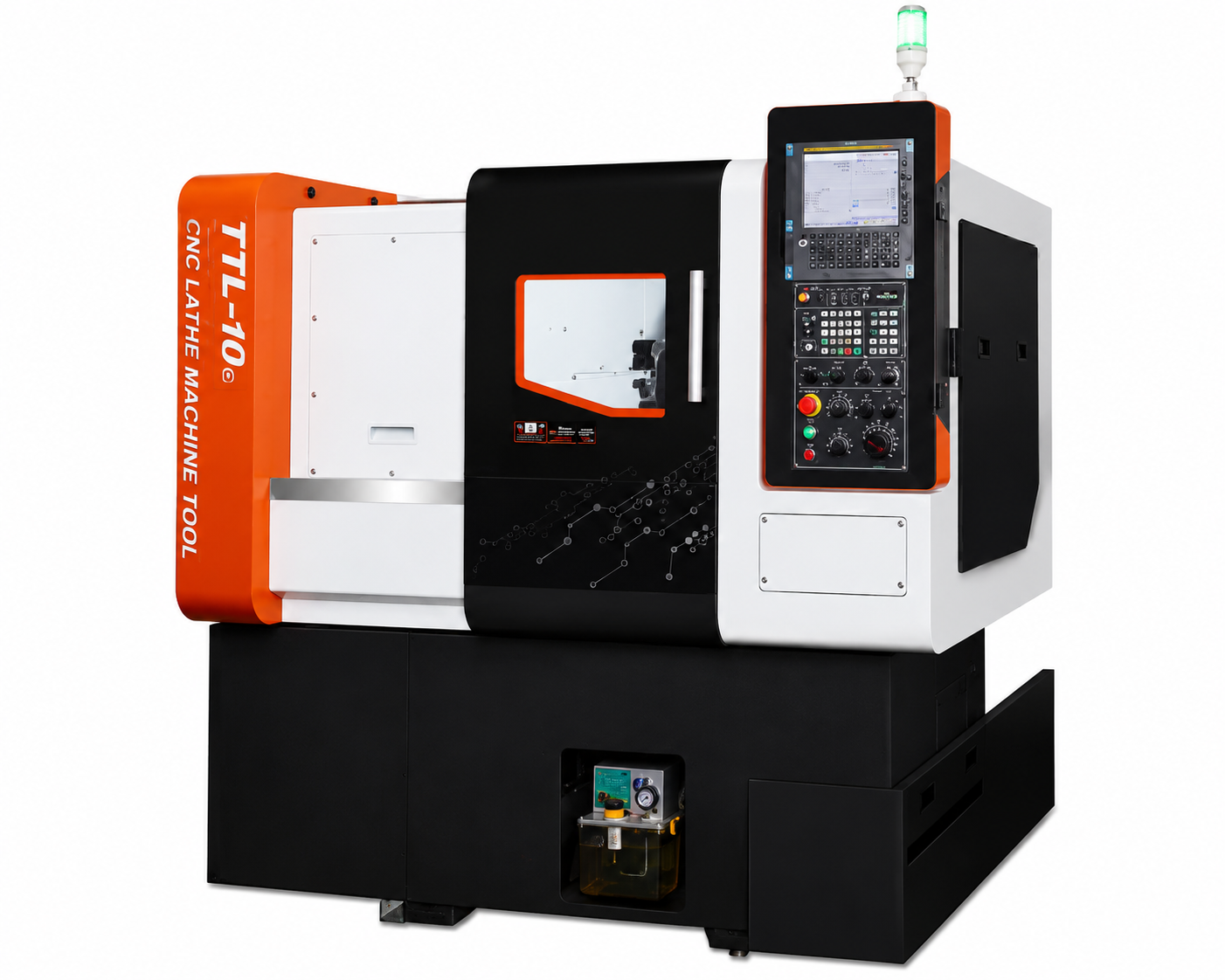

TMT TTL-10G CNC Gang-Type Lathe

The TMT TTL-10G CNC Gang-Type Lathe is a high-speed, compact machine designed for precision turning of small components in high-production environments. Built with a rigid slant-bed structure and linear guideways, it delivers excellent stability, fast cycle times, and high repeatability.

Engineered for efficiency, the TTL-10G is ideal for bar work and small-part machining where speed, accuracy, and automation are critical.

Key Features

  • 45° Slant Bed Design – Improves rigidity, chip evacuation, and thermal stability for consistent machining performance.
  • Gang-Type Tooling System – Fixed tooling layout enables ultra-fast tool changes, reducing cycle times.
  • High-Speed Spindle – Up to 6000 RPM with A2-4 spindle nose for precision turning applications.
  • Linear Guideways (X & Z) – Provide fast movement, high accuracy, and reduced friction for smooth operation.
  • Rapid Traverse Performance – Up to 18 m/min (optional 24 m/min) for improved productivity.
  • FANUC CNC Control – Reliable control system for precise positioning and easy programming.
  • Bar Work Ready – Designed for integration with bar feeders for automated production.
  • Parts Catcher & Conveyor – Improves automation and reduces manual handling of finished components.

Standard Specifications

  • Max Turning Diameter: 100 mm
  • Max Turning Length: 225 mm
  • Bar Capacity: 36 mm
  • Spindle Speed: 6000 RPM
  • Spindle Nose: A2-4
  • Spindle Bore: 45 mm
  • Spindle Motor: 5.5 / 7.5 kW
  • X-Axis Travel: 340 mm
  • Z-Axis Travel: 265 mm
  • Rapid Feedrate (X/Z): 18 / 18 m/min (Optional 24)
  • Tooling Type: Gang Tool
  • Tool Size: 20 x 20 mm
  • Controller: FANUC 0i-T

Specifications subject to change without notice.

Optional Features

  • C-Axis for live tooling (drilling, tapping, milling)
  • Automatic Bar Feeder Integration
  • High Pressure Coolant System
  • Oil Mist Collector
  • Chip Conveyor (Screw or Belt Type)
  • Automatic Tool Setting System
  • Hydraulic Chuck or Collet Systems

Applications

  • High-volume small part production
  • Bar-fed machining
  • Precision turned components
  • Automotive, electronics, and medical industries

Why Choose the TTL-10G?

  • Ultra-fast cycle times with gang tooling
  • Compact footprint for production environments
  • Excellent repeatability and machining accuracy
  • Ideal for automated bar-fed production
  • Lower cost per part compared to turret lathes

(TMT-TTL-10G)

SKU TMT-TTL-10G
Brand TMT
