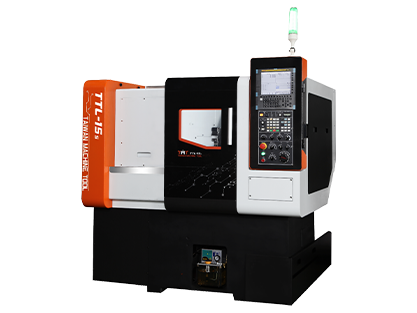

TMT TTL-15S Slant Bed CNC Lathe

TMT TTL-15S CNC Turning Centre

The TMT TTL-15S CNC Turning Centre is a high-performance, compact CNC lathe designed for precision machining of small to medium components. Featuring a rigid 45° slant bed, linear guideways, and a high-speed servo turret, this machine delivers excellent stability, accuracy, and efficient chip evacuation.

With increased capacity over the TTL-10S, the TTL-15S is ideal for bar work and production machining where higher bar capacity and larger chuck size are required while maintaining fast cycle times and consistent repeatability.

Key Features

• 45° Slant Bed Design – Improves rigidity, chip evacuation, and thermal stability for consistent machining performance.
• High-Speed Servo Turret – Fast indexing (~0.3 sec) for improved productivity and reduced cycle times.
• High-Speed Spindle – Up to 6000 RPM for efficient and accurate turning operations.
• Linear Guideways (X & Z) – Deliver high positioning accuracy, smooth movement, and reduced friction.
• Rigid Machine Structure – One-piece cast base with FEM optimisation improves stability and reduces deformation.
• Direct-Coupled Servo Drives – Minimises backlash and thermal distortion for improved machining accuracy.
• FANUC CNC Control – Reliable control system for precision machining and ease of operation.
• Bar Work Ready – Designed for integration with bar feeders for automated production.
• Efficient Chip Management – Slant bed design and chip handling options improve chip evacuation.

Standard Specifications

• Max Turning Diameter: 360 mm
• Max Turning Length: 250 mm
• Swing Over Bed: 475 mm
• Bar Capacity: 42 mm
• Chuck Size: 6 inch
• Spindle Speed: 6000 RPM
• Spindle Nose: A2-5
• Rapid Feedrate (X/Z): 18 / 18 m/min
• Turret Type: Servo Turret (V8)
• Controller: FANUC 0i-T

Specifications subject to change without notice.

Optional Features

• C-Axis for live tooling (drilling, tapping, milling)
• Automatic bar feeder integration
• High pressure coolant system
• Oil mist collector
• Chip conveyor (chain or screw type)
• Automatic tool presetter
• Parts catcher and product conveyor
• Auto door system

Applications

• Small to medium component machining
• General turning operations
• Bar-fed production
• Automotive and engineering industries

Why Choose the TTL-15S?

• Higher bar capacity and chuck size than TTL-10S
• Fast turret indexing for improved productivity
• Compact and efficient machine footprint
• Excellent repeatability and machining accuracy
• Ideal for production environments requiring flexibility
