TTB-30 Series Lathe (Price Starting From)

Email For Quote: sales@williamstoolco.com

$326,000.00
Sold Out

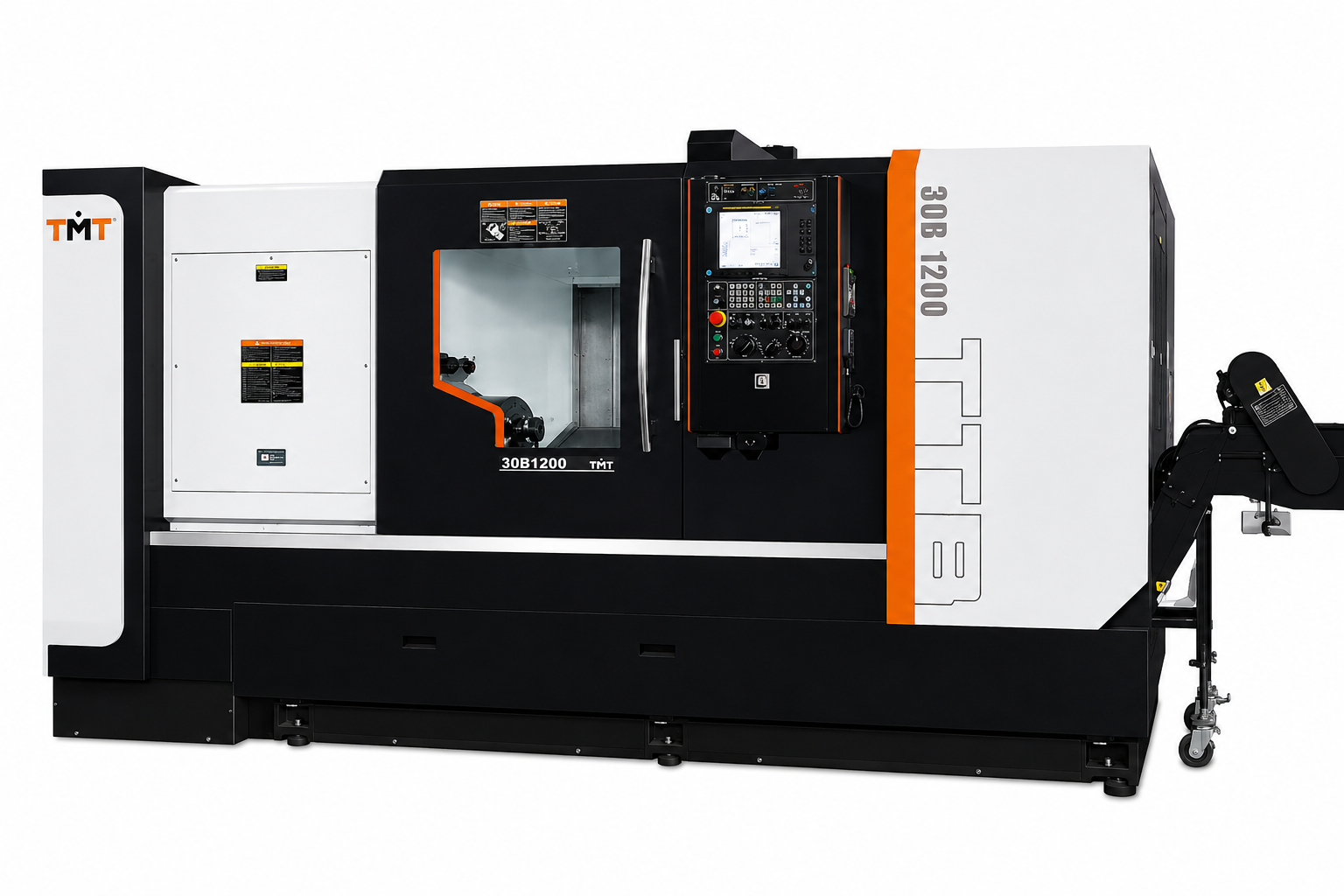

TMT TTB-30 Series CNC Turning Centre

The TMT TTB-30 Series CNC Turning Centre delivers the ultimate balance of rigidity, performance, and precision. Engineered with an optimised structural design, the TTB-30 series provides exceptional cutting stability and high torque capability, making it ideal for heavy-duty turning applications with large workpieces.

Built with a robust slant bed structure and advanced engineering features, this machine ensures long-term accuracy, reduced vibration, and superior machining efficiency in demanding production environments.

Key Specifications

  • Turret: 10 Station Servo Tool Turret
  • Swing Over Bed: Ø680mm
  • Swing Over Saddle: Ø500mm
  • Chuck Size: 12” Hydraulic Through-Hole 3-Jaw Chuck
  • Spindle Speed: 2500 RPM
  • Spindle Nose: A2-8
  • Spindle Bore: Ø105mm
  • Bar Capacity: Ø91mm
  • Max Working Length: 1130mm
  • Spindle Motor: 15 / 18.5 kW (30 min rating)
  • Rapid Feed Rate (X/Z): 16 / 20 m/min

Machine Structure

  • 30° Slant Bed Design – One-piece Meehanite cast iron construction ensures maximum rigidity and long-term stability.
  • FEM Optimised Frame – Rib-reinforced structure minimises thermal distortion and enhances vibration damping.
  • Enhanced Guideway Design – Wider spacing and thicker saddle improve cutting rigidity and accuracy.
  • Direct Coupled Servo Motors – High-preload ball screws minimise backlash and improve positioning precision.

Spindle & Headstock Options

  • High Torque Spindle – Designed for heavy-duty cutting with excellent stability.
  • Headstock Options:
    • TTB-30A / AM – Ø92mm
    • TTB-30B / BM – Ø105mm
    • TTB-30C / CM – Ø130mm
  • 2-Speed Gearbox (TTB-30C Series) – Provides high torque at low RPM for demanding machining conditions.

Turret & Tooling

  • Hydraulic Turret – Driven by DANFOSS hydraulic motor with precision curvic coupling for fast and reliable indexing.
  • BMT Power Turret (Optional) – High rigidity with strong tool clamping for heavy turning and milling operations.
  • Manual / Auto Tool Presetter (Optional) – Reduces setup time and ensures tool accuracy.

Y-Axis Capability (TTB-30MY Series)

  • Boxway Y-Axis – High rigidity design for multi-process machining including milling and eccentric drilling.
  • True Linear Y-Axis – Provides superior straightness and positioning accuracy compared to simulated Y-axis systems.

Cooling & Chip Management

  • Independent Coolant Tank – Front-removable for easy maintenance and cleaning.
  • Oil Separation System – Maintains coolant quality for extended tool life.
  • Front Discharge System – Compatible with side-type chip conveyors for efficient chip removal.

Standard Accessories

  • FANUC 0i-TF PLUS Control (10.4") with Manual Guide i
  • 10” Hydraulic Through-Hole 3-Jaw Chuck
  • 10 Station Servo Tool Turret
  • Manual Tailstock (MT5) with Ø90 Quill
  • 4 Boring Tool Holders, 1 Facing Tool Holder, 3 OD Tool Holders
  • Boring Bar Sleeves: 10 / 12 / 16 / 20 / 25 / 32 (2 of each size)
  • 3 Colour Operation Status Light
  • Foot Switch for Chuck Control
  • Coolant System & Coolant Tank
  • Automatic Lubrication System
  • Working Lamp
  • Levelling Bolts & Pads
  • Maintenance & Operation Manuals
  • Rigid Tapping
  • Dynamic Graph Simulation
  • Chip Conveyor & Chip Cart
  • RS-232 Interface / PCMCIA
  • Heat Exchanger
  • Auto Power Off
  • Transformer (30KVA)

Optional Accessories

  • 12 Station Servo Turret
  • 10" Hard Jaws (1 additional set – 2 sets total)
  • 10" Soft Jaws (3 sets, 3 pieces per set)
  • 10 Bar High Pressure Coolant System
  • Cable Between Transformer and Machine
  • TMT Manual Steady Rest (40–250mm) with Trolley

Applications

  • Heavy-duty turning operations
  • Large diameter component machining
  • Precision shaft and bar work
  • Production and high-volume manufacturing

(WTC-TMT-TTB-30B-1200)

SKU WTC-TMT-TTB-30B-1200
Brand TMT

Be The First To Review This Product!

Help other Williams Tool Co users shop smarter by writing reviews for products you have purchased.

Write a product review

Others Also Bought


More From This Category


FFG-DMC-DL10T/10TH/10TMH
FFG-DMC-DL18MA/18MB
FFG-DMC-DL6T/6TH/6TMH

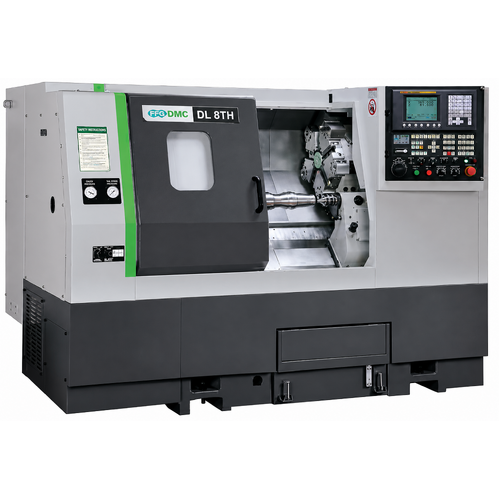

FFG-DMC-DL8T/8TH/8TMH
