FFG-DMC-DL18MA/18MB

Email For Quote: sales@williamstoolco.com

$0.00
Sold Out

Brochure In PDF Above

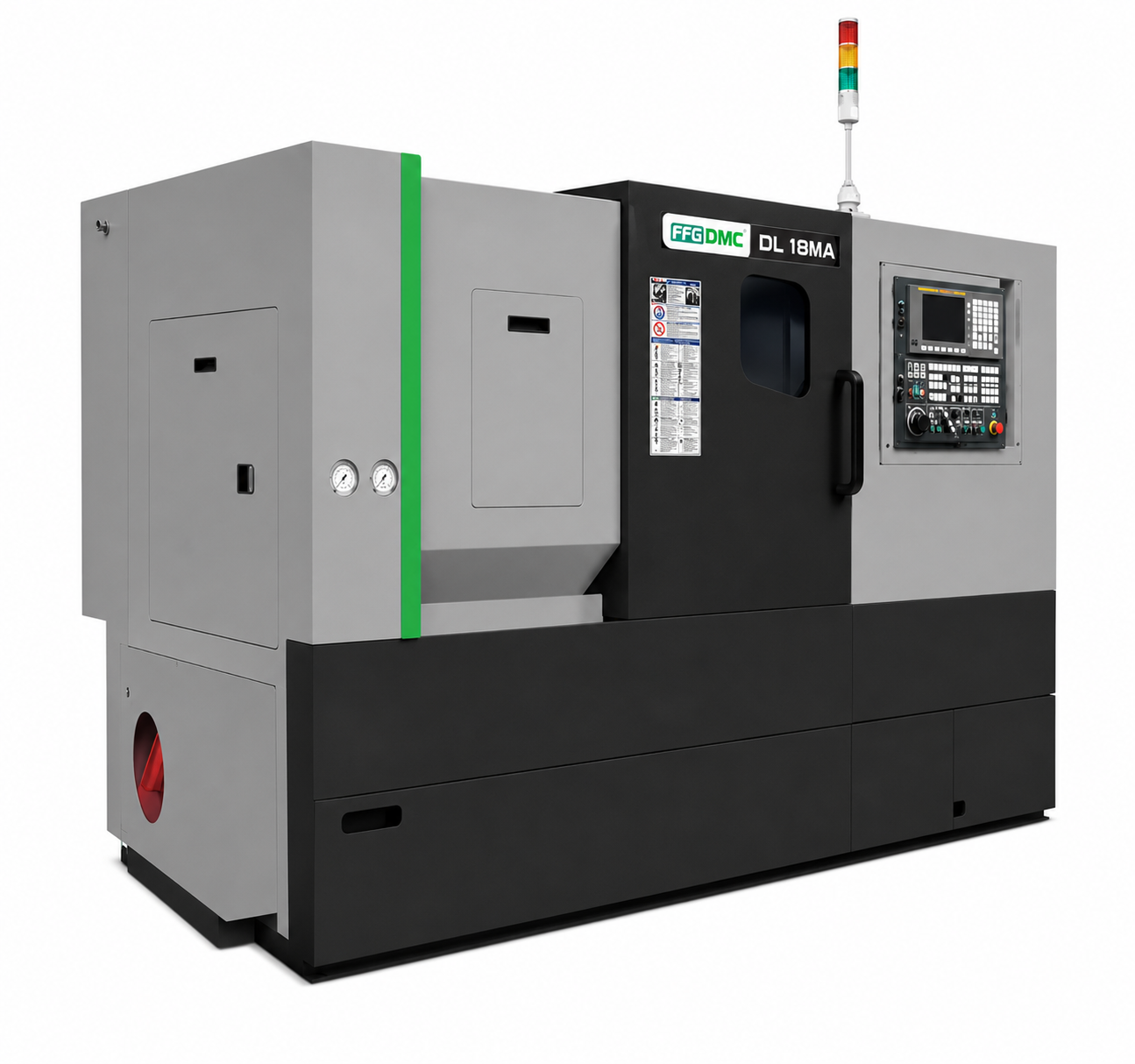

FFG DMC DL 18MA / 18MB CNC Turning Centre

The FFG DMC DL 18 Series CNC Turning Centre is a high-performance, heavy-duty machine designed for rigid cutting, multi-process machining, and high-volume production environments. Built with a robust box way structure, powerful spindle options, and integrated mill-turn capability, this machine delivers exceptional strength, stability, and machining precision.

Key Features

  • Heavy-Duty Box Way Construction – Maximum rigidity and vibration damping for aggressive machining.
  • High Power Spindle – Designed for demanding cutting applications and heavy material removal.
  • Mill-Turn Capability – Live tooling for multi-process machining in a single setup.
  • Servo Turret System – Fast, accurate tool indexing for reduced cycle times.
  • High Production Design – Built for continuous operation and production efficiency.
  • Thermal Stability – Rigid structure ensures consistent machining accuracy over long runs.

Model Options

DL 18MA
6 inch chuck configuration
High-speed spindle version
Maximum turning length: 380mm

DL 18MB
8 inch chuck configuration
High-torque spindle version
Maximum turning length: 370mm

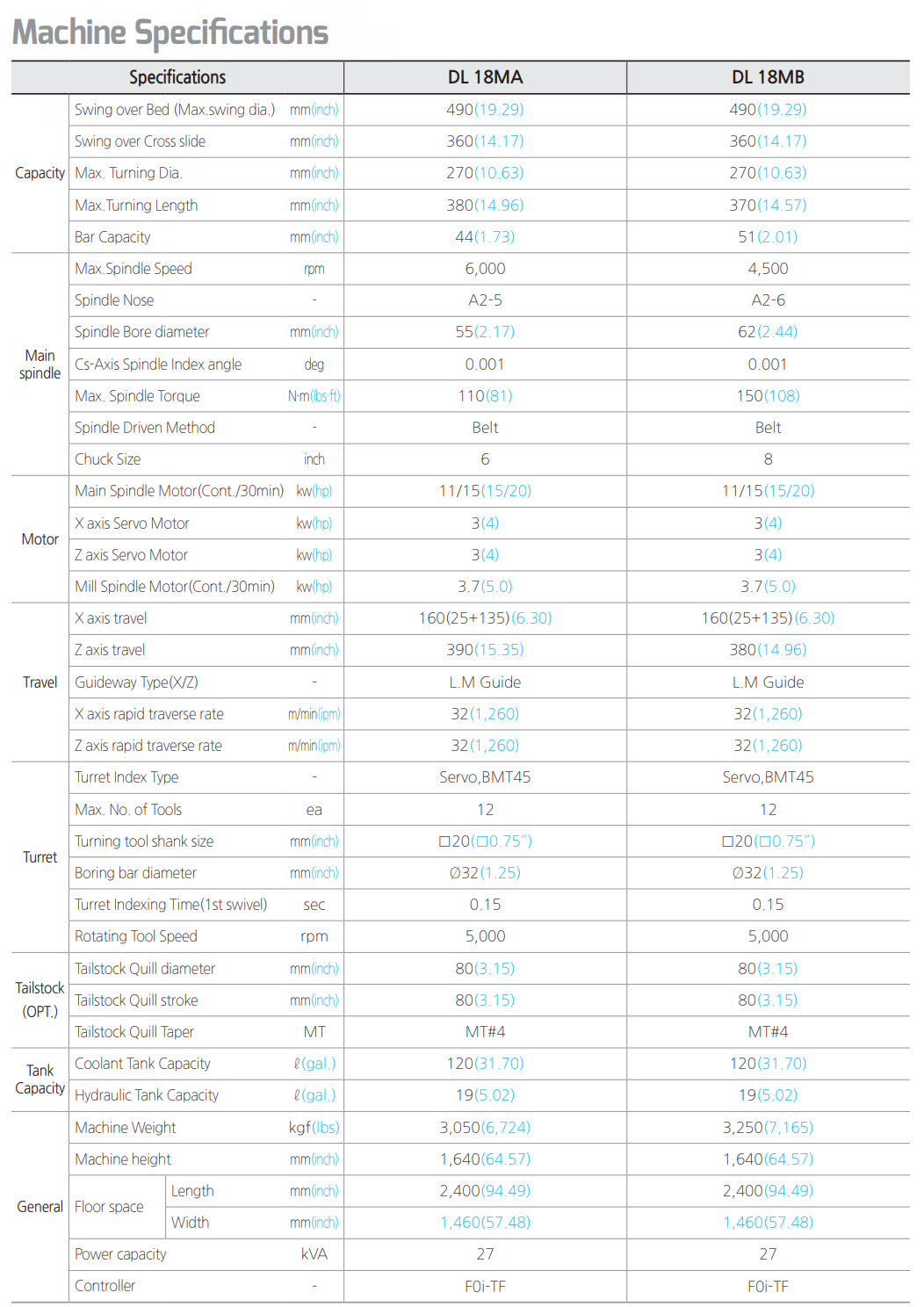

Capacity & Travels

  • Maximum Swing Over Bed: 490mm
  • Maximum Swing Over Cross Slide: 360mm
  • Maximum Turning Diameter: 270mm
  • X-Axis Travel: 160mm
  • Z-Axis Travel: 380–390mm (model dependent)
  • Bar Capacity: Up to 51mm

Spindle Specifications

  • Maximum Spindle Speed: Up to 6000 RPM (MA) / 4500 RPM (MB)
  • Spindle Nose: A2-5 (MA) / A2-6 (MB)
  • Spindle Bore: 55mm (MA) / 62mm (MB)
  • Maximum Torque: Up to 150 Nm
  • Drive Type: High rigidity belt-driven spindle system

Turret & Tooling

  • Servo Turret System
  • Tool Capacity: 12 stations
  • Live Tooling: Up to 5000 RPM
  • Tool Shank Size: 20mm
  • Boring Bar Capacity: 32mm

Standard Equipment

  • Fanuc 0i-TF Control System
  • Hydraulic Chuck with Soft Jaws
  • Coolant System with Filtration
  • Automatic Lubrication System
  • LED Work Light
  • Safety Door Interlock System
  • USB & RS232 Connectivity

Optional Equipment

  • Bar Feeder & Automation Systems
  • Parts Catcher & Conveyor
  • High Pressure Coolant System
  • Oil Mist Collector
  • Tool Monitoring System

Why Choose This Machine

  • Ultra-rigid box way construction for heavy-duty machining
  • High torque spindle for demanding materials
  • Mill-turn flexibility for complex parts
  • Optimised for high-volume production environments
  • Reliable Fanuc control system for consistent accuracy

(WTC-FFG-DMC-DL18M)

SKU WTC-FFG-DMC-DL18M
Brand FFG-DMC
