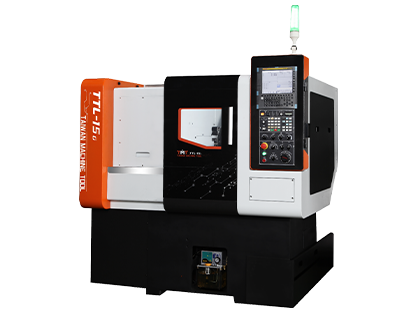

TMT TTL-15G CNC Gang-Type Lathe

The TMT TTL-15G CNC Gang-Type Lathe is a high-performance, compact turning centre designed for precision machining of small to medium components in high-production environments. Featuring a rigid slant-bed structure and linear guideways, this machine delivers excellent stability, fast cycle times, and consistent repeatability.

With increased capacity compared to smaller gang-type models, the TTL-15G is ideal for bar work and precision component production where speed, accuracy, and automation are critical.

Key Features

  • 45° Slant Bed Design – Enhances rigidity, chip evacuation, and thermal stability for consistent machining performance.
  • Gang-Type Tooling System – Fixed tooling layout allows ultra-fast tool changes, reducing cycle times and increasing output.
  • High-Speed Spindle – Up to 4500 RPM with A2-5 spindle nose for stable and accurate turning.
  • Linear Guideways (X & Z) – Provide smooth, high-speed movement with excellent positioning accuracy.
  • Rapid Traverse Performance – Up to 24 m/min rapid feedrates for improved productivity.
  • FANUC CNC Control – Industry-proven control system for precision, reliability, and ease of use.
  • Bar Work Ready – Designed for integration with bar feeders for automated production.
  • Parts Catcher System – Improves automation and reduces manual handling of finished parts.

Standard Specifications

  • Max Turning Diameter: 150 mm
  • Max Turning Length: 300 mm
  • Bar Capacity: 45 mm
  • Spindle Speed: 4500 RPM
  • Spindle Nose: A2-5
  • Spindle Bore: 56 mm
  • Spindle Motor: 7.5 / 11 kW
  • X-Axis Travel: 500 mm
  • Z-Axis Travel: 300 mm
  • Rapid Feedrate (X/Z): 24 / 24 m/min
  • Tooling Type: Gang Tool
  • Tool Size: 20 x 20 mm
  • Controller: FANUC 0i-TF PLUS

Specifications subject to change without notice.

Optional Features

  • C-Axis for live tooling (drilling, tapping, milling)
  • Automatic Bar Feeder Integration
  • High Pressure Coolant System
  • Oil Mist Collector
  • Chip Conveyor (Screw or Belt Type)
  • Automatic Tool Setting System
  • Hydraulic Chuck or Collet Systems

Applications

  • High-volume small to medium part production
  • Bar-fed machining
  • Precision turned components
  • Automotive, electronics, and engineering industries

Why Choose the TTL-15G?

  • Higher capacity than smaller gang-type lathes
  • Fast cycle times with minimal tool change delay
  • Compact and efficient production footprint
  • Excellent repeatability and machining accuracy
  • Ideal for automated, high-volume manufacturing

(TMT-TTL-15G)

SKU TMT-TTL-15G
Brand TMT
