TMT TTL 10S Slant Bed CNC Lathe

Email For Quote: sales@williamstoolco.com

$0.00
Sold Out

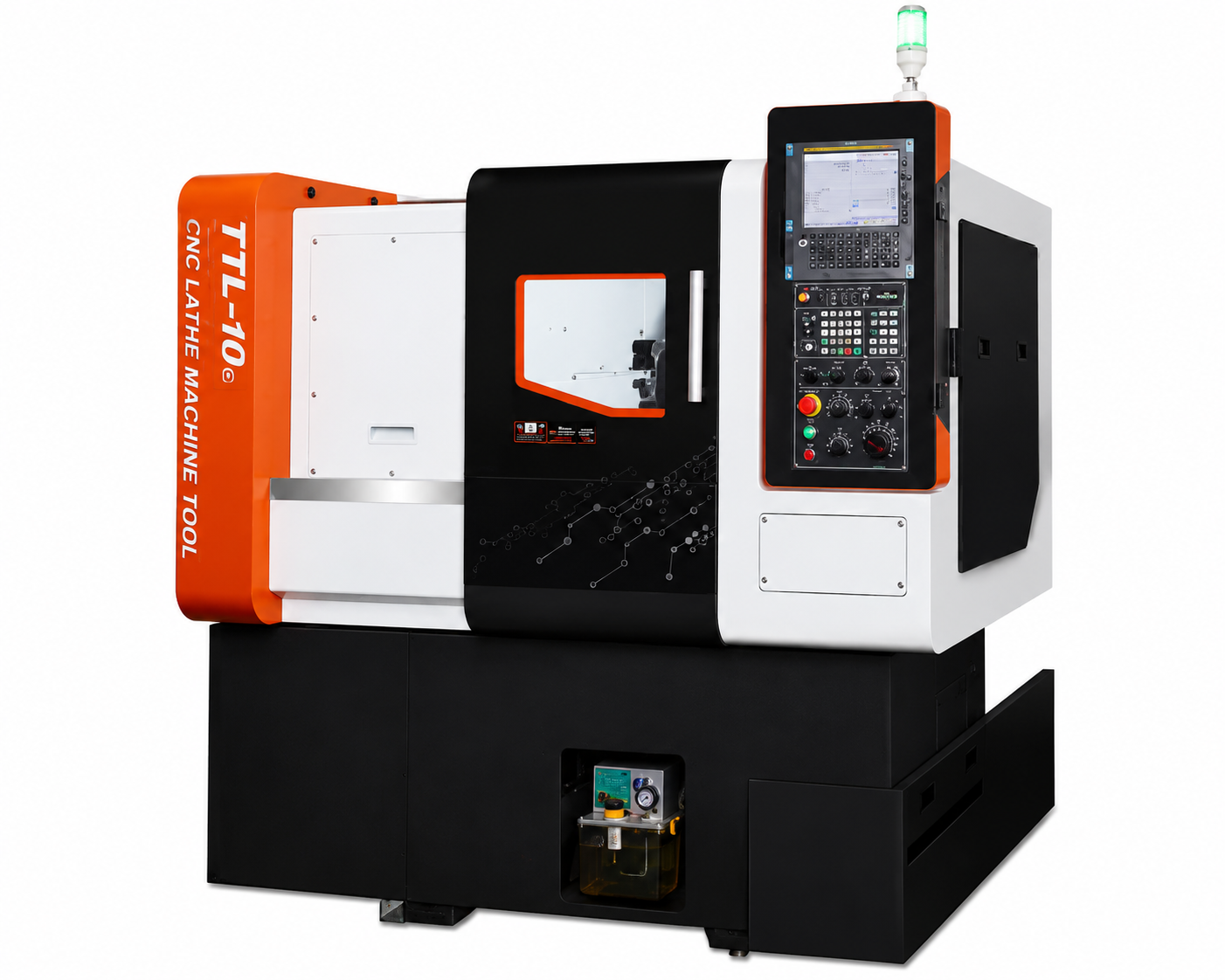

TMT TTL-10S CNC Turning Centre

The TMT TTL-10S CNC Turning Centre is a high-speed, high-precision compact CNC lathe designed for versatile turning operations in production environments. Featuring a rigid 45° slant bed, linear guideways, and a fast servo turret system, the TTL-10S delivers excellent stability, accuracy, and efficient chip evacuation.

Designed for flexibility and performance, the TTL-10S is ideal for small to medium component machining, offering a balance between speed, rigidity, and machining capacity.

Key Features

  • 45° Slant Bed Design – Enhances rigidity, thermal stability, and chip evacuation for consistent machining performance.
  • High-Speed Servo Turret – Fast and precise tool indexing for reduced cycle times and improved productivity.
  • High-Speed Spindle – Up to 6000 RPM for efficient and accurate turning operations.
  • Linear Guideways (X & Z) – Provide smooth movement, high positioning accuracy, and reduced friction.
  • Rigid Machine Structure – FEM-optimised casting design improves stability and minimises deformation.
  • FANUC CNC Control – Industry-standard control system for reliable and precise machining.
  • Bar Work Capability – Suitable for bar-fed production environments.
  • Efficient Chip Management – Designed for easy chip evacuation and maintenance.

Standard Specifications

  • Max Turning Diameter: 360 mm
  • Max Turning Length: 275 mm
  • Swing Over Bed: 475 mm
  • Bar Capacity: 33 mm
  • Chuck Size: 5 inch
  • Spindle Speed: 6000 RPM
  • Spindle Nose: A2-4
  • Spindle Motor: 5.5 / 7.5 kW
  • X-Axis Travel: 180 mm (+20 mm optional)
  • Z-Axis Travel: 260 mm (optional 330 mm)
  • Rapid Feedrate (X/Z): 18 / 18 m/min
  • Turret Type: VDI-30 Servo Turret
  • Tool Stations: 10 Position
  • Controller: FANUC 0i-TF

Specifications subject to change without notice.

Optional Features

  • C-Axis for live tooling operations
  • Automatic bar feeder integration
  • High pressure coolant system
  • Oil mist collector
  • Chip conveyor system
  • Automatic tool setting system
  • Hydraulic chuck or collet system
  • Parts catcher and conveyor

Applications

  • Small to medium component machining
  • General turning operations
  • Bar-fed production
  • Automotive and engineering industries

Why Choose the TTL-10S?

  • Versatile turning capability with turret flexibility
  • High-speed machining with excellent accuracy
  • Compact footprint for efficient shop layouts
  • Reliable FANUC control system
  • Ideal balance between capacity and productivity

(TMT-TTL-10S)

SKU TMT-TTL-10S
Brand TMT
