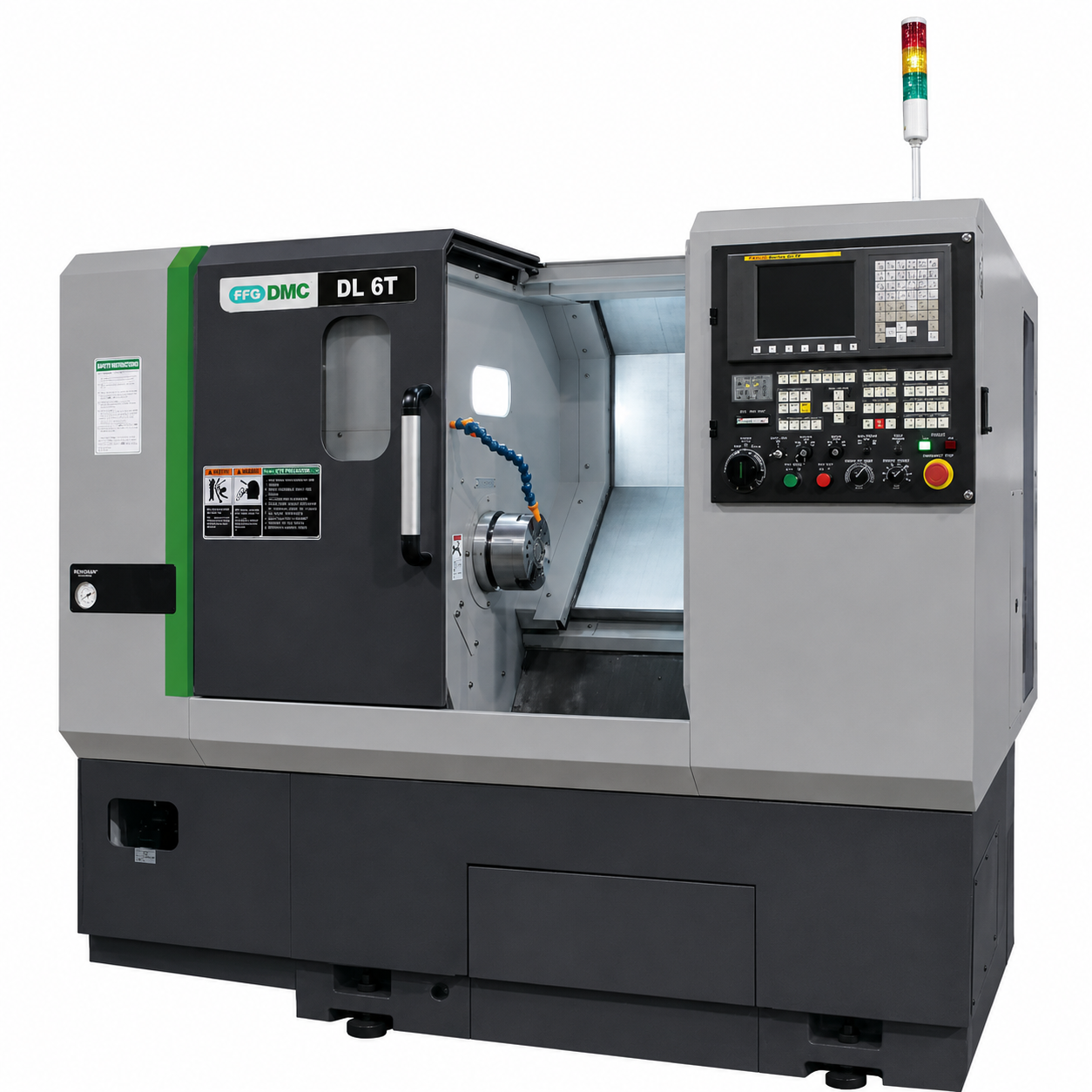

FFG DMC DL 6T / 6TH / 6TMH CNC Turning Centre

The FFG DMC DL 6T Series CNC Turning Centre is a high-speed, high-precision compact lathe designed to maximise productivity within a small footprint. Featuring a rigid 45° slant bed, high-performance spindle, and fast indexing turret, this machine delivers consistent accuracy and efficiency for modern machining environments.

Ideal for production and workshop use, the DL 6T Series offers flexible configurations including standard turning, extended bed, and mill-turn capability.

Key Features

  • 45° Slant Bed Design – Provides excellent rigidity, chip control, and thermal stability.
  • High-Speed Spindle – Up to 6000 RPM for efficient machining.
  • Fast Turret Indexing – 0.2 second indexing reduces cycle times.
  • Rapid Traverse Rates – Improves productivity and reduces idle time.
  • Wide Saddle Design – Minimises vibration for improved surface finish.
  • Precision Linear Guideways – Ensures smooth motion and high positioning accuracy.

Model Options

  • DL 6T – Standard turning configuration with 10 station turret and 320mm max turning length.
  • DL 6TH – Extended bed version with 10 station turret and 520mm max turning length.
  • DL 6TMH – Mill-turn version with 12 station turret, live tooling (up to 5000 RPM), and C-axis capability.

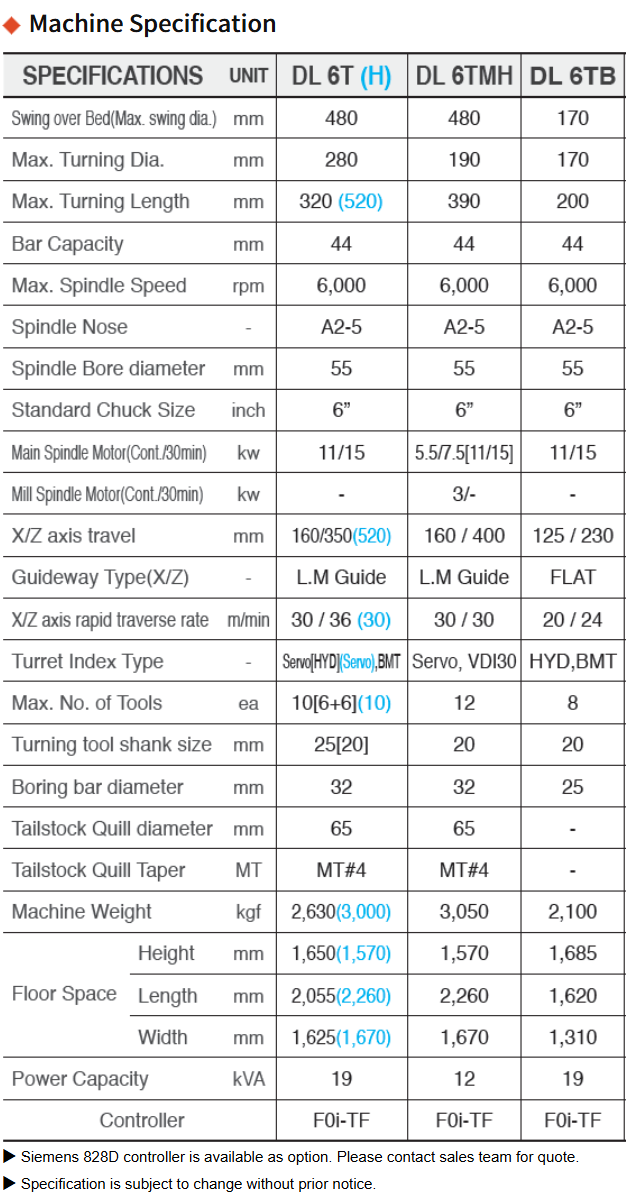

Capacity & Travels

  • Max Swing Over Bed: 480mm
  • Max Turning Diameter: 280mm (190mm on TMH)
  • X-Axis Travel: 160mm
  • Z-Axis Travel: 350mm / 520mm / 400mm (model dependent)
  • Bar Capacity: 44mm

Spindle Specifications

  • Max Spindle Speed: 6000 RPM
  • Spindle Nose: A2-5
  • Spindle Bore: 55mm
  • Max Torque: 110 Nm (6T / 6TH), 70 Nm (6TMH)
  • Motor Power: Up to 15 kW

Turret & Tooling

  • Servo Turret System
  • Tool Capacity: 10 or 12 stations depending on model
  • Tool Shank Size: 25mm (20mm on TMH)
  • Boring Bar Capacity: 32mm

Standard Equipment

  • Fanuc 0i-TF Control
  • Hydraulic Chuck with Soft Jaws
  • Coolant System with Filtration
  • Automatic Lubrication System
  • LED Work Light
  • Door Safety Interlock
  • USB & RS232 Connectivity

Optional Equipment

  • Bar Feeder or Automation Systems
  • Parts Catcher & Conveyor
  • High Pressure Coolant System
  • Oil Skimmer & Mist Collector
  • Tool Monitoring System

Applications

  • High-speed production turning
  • Precision component machining
  • Mill-turn operations (TMH model)
  • General engineering and manufacturing

Why Choose This Machine

  • High-speed, high-precision performance
  • Compact footprint ideal for smaller workshops
  • Flexible configurations for varied applications
  • Reliable Fanuc control system
  • Designed for production efficiency
