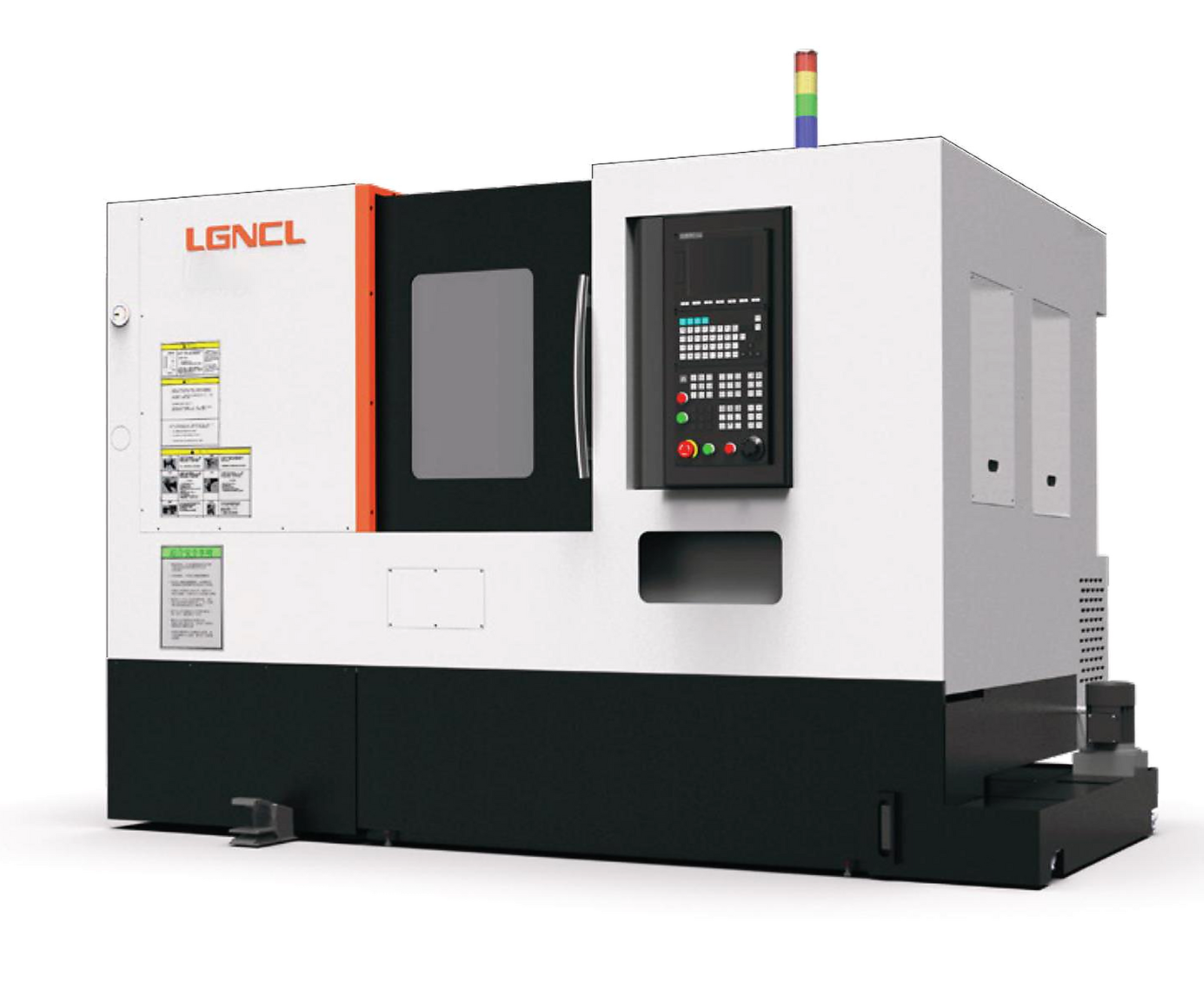

LGNCL QT55LMY-630 CNC Turning & Milling Centre

The LGNCL QT55LMY-630 is a high-performance CNC turning and milling centre engineered for precision machining, multi-tasking operations, and high-efficiency production environments.

Featuring a powerful Y-axis live tooling system, servo tailstock, and rigid slant-bed construction, the QT55LMY-630 is designed to perform turning, drilling, milling, tapping, and complex machining operations in a single setup.

The machine is equipped with an 8” chuck, a high-speed 4,500 RPM spindle, and a precision BMT55 live turret capable of live tooling speeds up to 6,000 RPM. Combined with FANUC control and premium Japanese components, the QT55LMY-630 delivers exceptional machining accuracy, repeatability, and reliability.

Designed with high-rigidity roller linear guideways and a reinforced machine bed structure, the QT55LMY-630 provides stable heavy-duty cutting performance while maintaining precision during long machining cycles.

Key Features

  • Y-axis turning and milling capability
  • High-rigidity slant-bed machine structure
  • Live tooling BMT55 turret
  • 8” hydraulic chuck system
  • High-speed 4,500 RPM spindle
  • Servo programmable tailstock
  • Premium THK roller guideways and ballscrews
  • FANUC 0i-TF CNC control system
  • Ideal for complex multi-operation machining
  • Excellent precision and repeatability

Machine Specifications

  • Maximum Swing Diameter: Ø550 mm
  • Maximum Machining Diameter: Ø350 mm
  • Maximum Machining Length: 420 mm
  • X-Axis Travel: 210 mm
  • Z-Axis Travel: 500 mm
  • Y-Axis Travel: ±50 mm
  • Spindle Bore: Ø62 mm
  • Maximum Bar Capacity: Ø51 mm
  • Spindle Nose: A2-6
  • Main Spindle Speed: 4,500 RPM
  • Main Spindle Motor: 18.7 / 25 kW
  • Live Tool Speed: 6,000 RPM
  • Turret Type: BMT55 Live Turret
  • Boring Bar Capacity: Ø40 mm
  • Square Tool Size: 25 mm
  • Positioning Accuracy: ±0.003 mm
  • Repeat Positioning Accuracy: ±0.002 mm
  • Machine Weight: 5,000 kg

Premium Component Configuration

  • FANUC 0i-TF CNC Control
  • FANUC spindle and servo motors
  • THK roller linear guideways
  • THK C3 precision ballscrews
  • NSK and NACHI P4 precision bearings
  • AUTOGRIP hydraulic chuck and cylinder
  • SCHNEIDER electrical components
  • GPM (SAUTER) 12-station live turret
